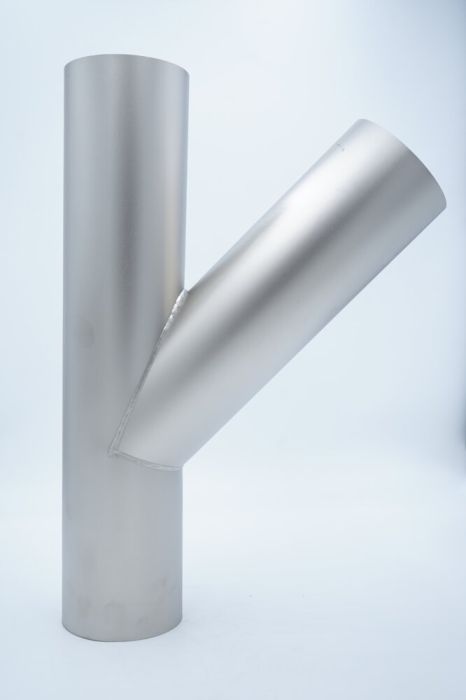

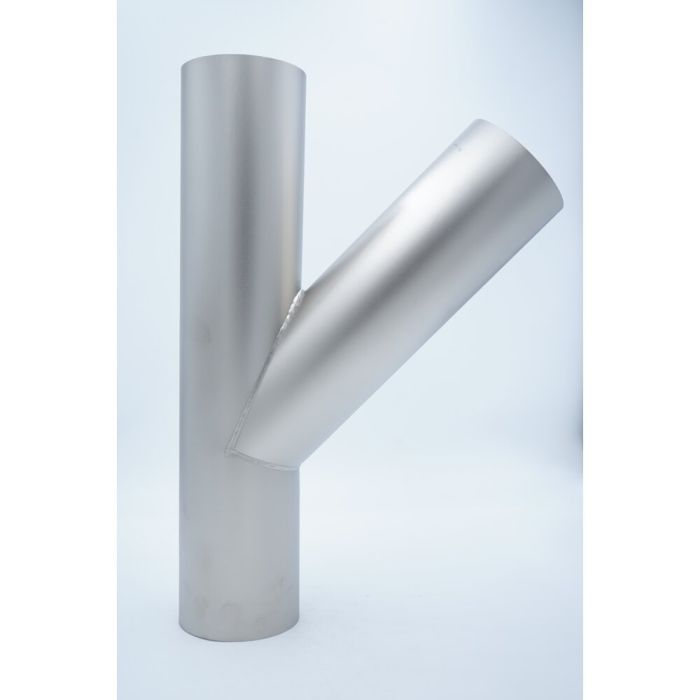

Branch Ø 100,0 x 1,5 - 45°
Branch Ø 100,0 x 1,5 - 45° | Exit Ø 100,0 x 1,5 | stainless steel 1.4301
Article Number
810014501
Branch Ø 100,0 x 1,5 - 45° is available to buy in increments of 1
Availability
stainless steel - Y piece , 45°
Main diameter: 100,0 x 1,5 mm
Outlet diameter: 100,0 x 1,5 mm
material No. 1.4301
- lasercutted and welded -
Main diameter: 100,0 x 1,5 mm
Outlet diameter: 100,0 x 1,5 mm
material No. 1.4301
- lasercutted and welded -
| Diameter [mm] | 100.00 |
|---|---|
| Wall thickness [mm] | 1.50 |
| Diameter (small) [mm] | 100.00 |
| Wall thickness (small Ø) [mm] | 1.50 |
| Angle [°] | 45.0 |
| Length A [mm] | 450.00 |
| Length B [mm] | 150.00 |
| Length C [mm] | 320.70 |
| Length C2 [mm] | 300.00 |
| Material | 14301 |
| Welding type | Outside tight welded |
| Processing | laser-cut and welded |
| Surface | 0 |
| HVA-Niro® | no |
