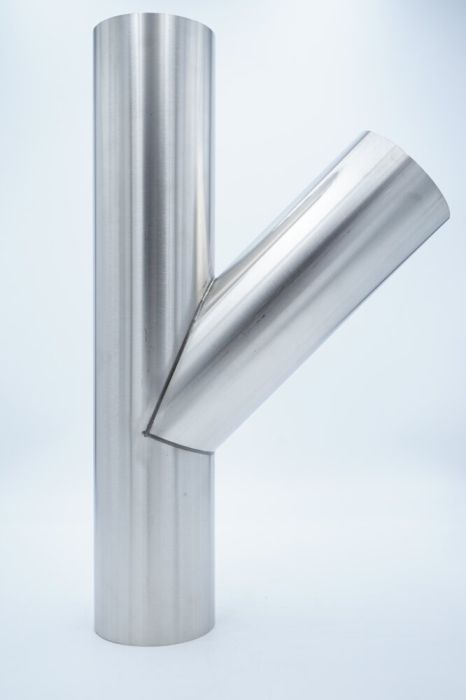

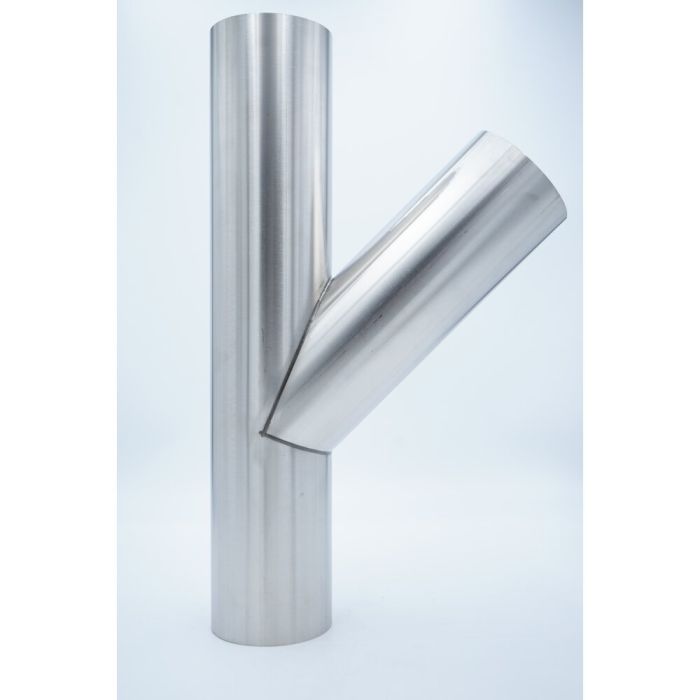

Branch Ø 104,0 x 2,0 - 45°
Branch Ø 104,0 x 2,0 - 45° | Exit Ø 104,0 x 2,0 | stainless steel 1.4301
Article Number
810414501
Branch Ø 104,0 x 2,0 - 45° is available to buy in increments of 1
Availability
Stainless steel Y-Branch-Pipes, 45°
Main diameter: 104,0 x 2,0 mm
Outlet diameter: 104,0 x 2,0 mm
Material: stainless steel 1.4301 (AISI 304)
laser-cut an welded
Main diameter: 104,0 x 2,0 mm
Outlet diameter: 104,0 x 2,0 mm
Material: stainless steel 1.4301 (AISI 304)
laser-cut an welded
| Diameter | 104,00 mm |
|---|---|
| Wall thickness | 2,00 mm |
| Diameter (small) | 104,00 mm |
| Wall thickness (small Ø) | 2,00 mm |
| Angle | 45,0 ° |
| Length A | 500,00 mm |
| Length B | 170,00 mm |
| Length C | 300,00 mm |
| Length C2 | 278,46 mm |
| Material | 1.4301 |
| Welding type | Outside tight welded |
| Processing | laser-cut and welded |
| Surface | 0 |
| HVA-Niro® | no |
