branch Ø 40,0 x 1,5 - 45°
branch Ø 40,0 x 1,5 - 45° | Exit Ø 40,0 x 1,5 | material 1.4301 (AISI 304) | "short Version"
Article Number
8040145KU
branch Ø 40,0 x 1,5 - 45° is available to buy in increments of 1
Availability

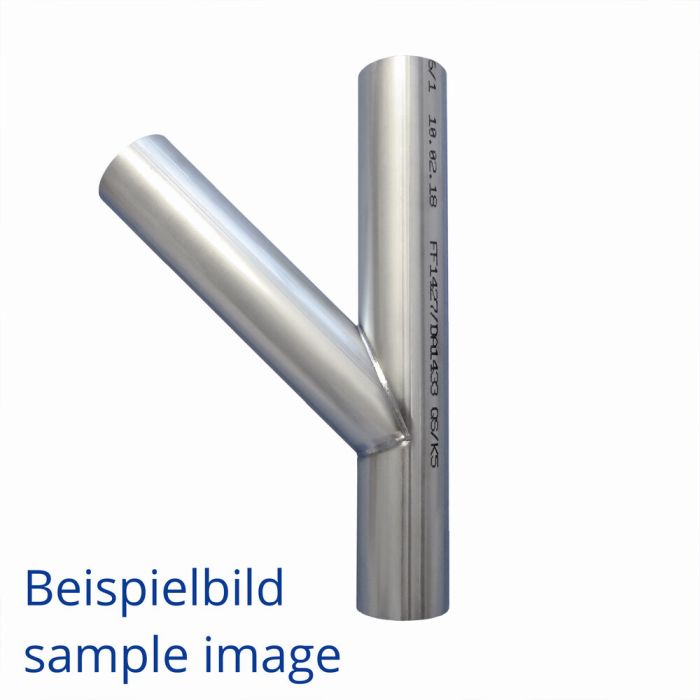

Stainless Steel Branch, 45°
Pipe Diameter: 40.0 x 1.5 mm
Branch Outlet: 40.0 x 1.5 mm
Material No.: 1.4301
Short Version
- Laser-cut and welded -
Pipe Diameter: 40.0 x 1.5 mm
Branch Outlet: 40.0 x 1.5 mm
Material No.: 1.4301
Short Version
- Laser-cut and welded -
| Diameter [mm] | 40.00 |
|---|---|
| Wall thickness [mm] | 1.50 |
| Diameter (small) [mm] | 40.00 |
| Wall thickness (small Ø) [mm] | 1.50 |
| Angle [°] | 45.0 |
| Length A [mm] | 235.00 |
| Length B [mm] | 100.00 |
| Length C [mm] | 135.00 |
| Length C2 [mm] | 126.70 |
| Material | 14301 |
| Welding type | Outside tight welded |
| Processing | laser-cut and welded |
| Surface | 0 |
| HVA-Niro® | no |
