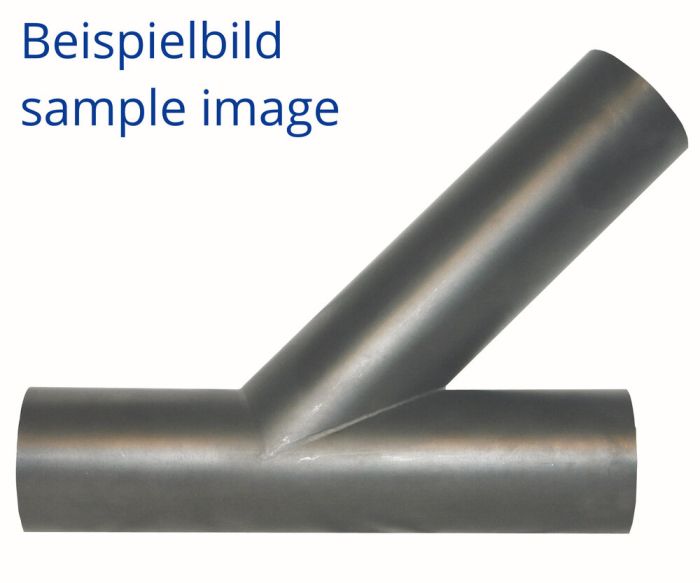

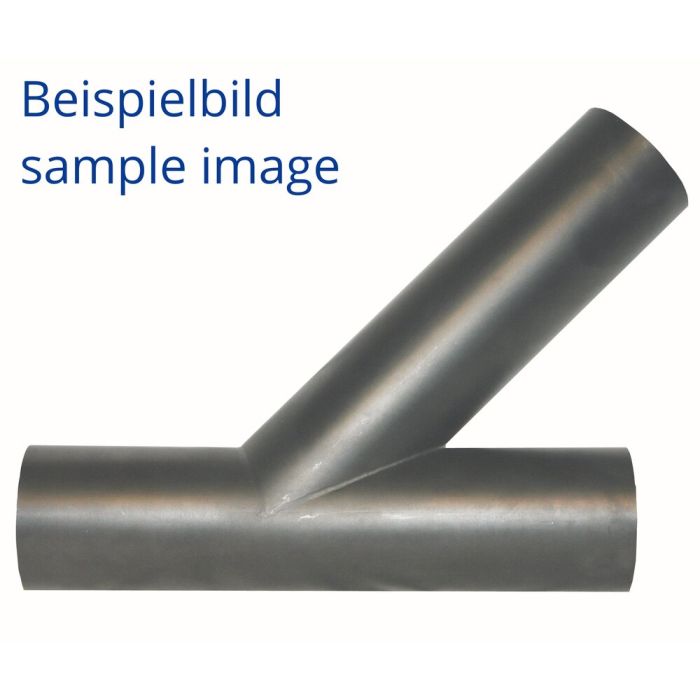

Branch Ø 45,0 x 1,5 - 45°
Branch Ø 45,0 x 1,5 - 45° | Exit Ø 45,0 x 1,5 | material 1.4301 - HVA-Niro®
Article Number
804514501-9
Branch Ø 45,0 x 1,5 - 45° is available to buy in increments of 1
Availability
HVA NIRO
Stainless steel Y-Branch-Pipes, 45°
Outer diameter = 50,0 x 1,5mm
Material: Stainless steel 1.4301 (AISI 304)
laser-cut and welded
- highly wear-resistant -
Stainless steel Y-Branch-Pipes, 45°
Outer diameter = 50,0 x 1,5mm
Material: Stainless steel 1.4301 (AISI 304)
laser-cut and welded
- highly wear-resistant -
| Diameter | 45,00 mm |
|---|---|
| Wall thickness | 1,50 mm |
| Diameter (small) | 45,00 mm |
| Wall thickness (small Ø) | 1,50 mm |
| Angle | 45,0 ° |
| Length A | 300,00 mm |
| Length B | 101,00 mm |
| Length C | 214,00 mm |
| Length C2 | 204,70 mm |
| Length C3 | 159,70 mm |
| Material | 1.4301 |
| Welding type | Outside tight welded |
| Processing | laser-cut and welded |
| Surface | 0 |
| HVA-Niro® | yes |
