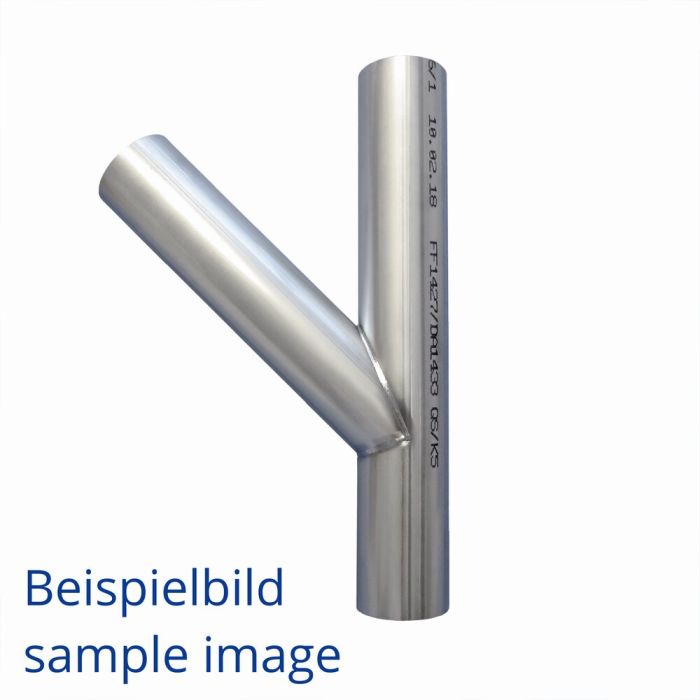

Branch Ø 45,0 x 1,5 - 45°
Branch Ø 45,0 x 1,5 - 45° | Exit Ø 45,0 x 1,5 | stainless steel 1.4301
Article Number
804514501
Branch Ø 45,0 x 1,5 - 45° is available to buy in increments of 1
Availability
Stainless steel Y-Branch-Pipes, 45°
Main diameter: 45,0 x 1,5 mm
Outlet diameter: 45,0 x 1,5 mm
Material: Stainless steel 1.4301 (AISI 304)
laser-cut and welded
Main diameter: 45,0 x 1,5 mm
Outlet diameter: 45,0 x 1,5 mm
Material: Stainless steel 1.4301 (AISI 304)
laser-cut and welded
| Diameter [mm] | 45.00 |
|---|---|
| Wall thickness [mm] | 1.50 |
| Diameter (small) [mm] | 45.00 |
| Wall thickness (small Ø) [mm] | 1.50 |
| Angle [°] | 45.0 |
| Length A [mm] | 300.00 |
| Length B [mm] | 101.00 |
| Length C [mm] | 214.00 |
| Length C2 [mm] | 204.70 |
| Length C3 [mm] | 159.70 |
| Material | 14301 |
| Welding type | Outside tight welded |
| Processing | laser-cut and welded |
| Surface | 0 |
| HVA-Niro® | no |
