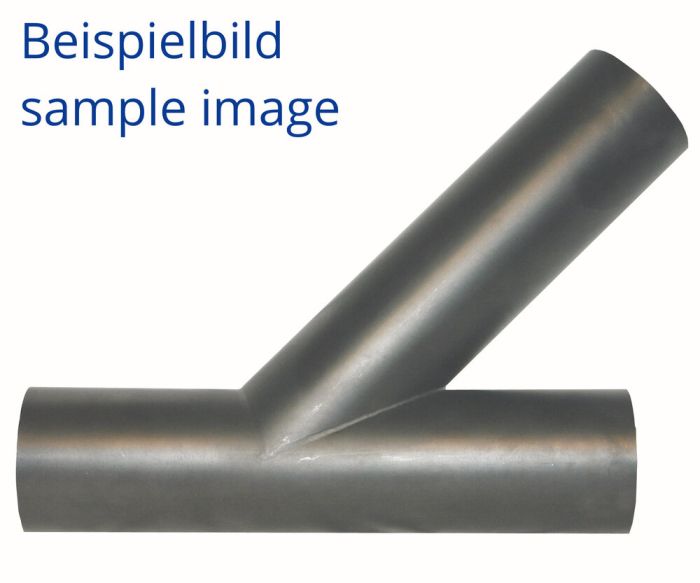

Branch Ø 54,0 x 2,0 - 45°
Branch Ø 54,0 x 2,0 - 45° | Exit Ø 54,0 x 2,0 | material 1.4301 - HVA-Niro®
Article Number
805414510-9
Branch Ø 54,0 x 2,0 - 45° is available to buy in increments of 1
Availability
"HVA NIRO
Edelstahl- Y-Abzweig, 45°
Rohrdurchmesser: 54,0 x 2,0 mm
Werkstoff Nr. 1.4301
""kurze Version"" 250,5/150 mm
- lasergeschnitten und geschweißt -
- hochverschleißfeste Ausführung- "
Edelstahl- Y-Abzweig, 45°
Rohrdurchmesser: 54,0 x 2,0 mm
Werkstoff Nr. 1.4301
""kurze Version"" 250,5/150 mm
- lasergeschnitten und geschweißt -
- hochverschleißfeste Ausführung- "
| Diameter [mm] | 54.00 |
|---|---|
| Wall thickness [mm] | 2.00 |
| Diameter (small) [mm] | 54.00 |
| Wall thickness (small Ø) [mm] | 2.00 |
| Angle [°] | 45.0 |
| Length A [mm] | 250.50 |
| Length B [mm] | 81.80 |
| Length C [mm] | 161.18 |
| Length C2 [mm] | 150.00 |
| Material | 14301 |
| Welding type | Outside tight welded |
| Processing | laser-cut and welded |
| Surface | 0 |
| HVA-Niro® | yes |
