Branch Ø 60,3 x 2,0 - 45°
Branch Ø 60,3 x 2,0 - 45° | Exit Ø 60,3 x 2,0 | material 1.4301 - HVA-Niro®
Article Number
806014501-9
Branch Ø 60,3 x 2,0 - 45° is available to buy in increments of 1
Availability
HVA-NIRO

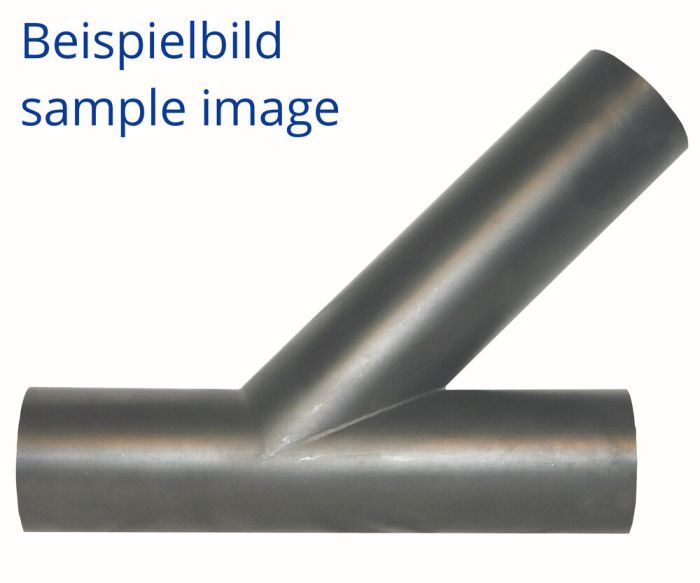

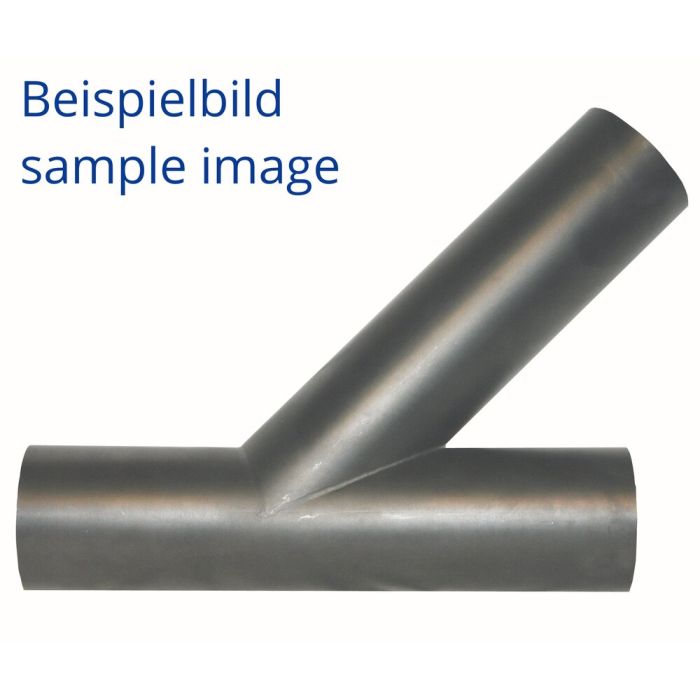

Stainless steel Y-Branch-Pipes, 45°
Outer diameter = 60,3 x 2,0mm
Material: Stainless steel 1.4301 (AISI 304)
laser-cut and welded
- highly wear-resistant -
Stainless steel Y-Branch-Pipes, 45°
Outer diameter = 60,3 x 2,0mm
Material: Stainless steel 1.4301 (AISI 304)
laser-cut and welded
- highly wear-resistant -
| Diameter [mm] | 60.30 |
|---|---|
| Wall thickness [mm] | 2.00 |
| Diameter (small) [mm] | 60.30 |
| Wall thickness (small Ø) [mm] | 2.00 |
| Angle [°] | 45.0 |
| Length A [mm] | 350.00 |
| Length B [mm] | 100.00 |
| Length C [mm] | 222.00 |
| Length C2 [mm] | 209.50 |
| Material | 14301 |
| Welding type | Outside tight welded |
| Processing | laser-cut and welded |
| Surface | 0 |
| HVA-Niro® | yes |
