Branch Ø 60,3 x 2,0 - 45°
Branch Ø 60,3 x 2,0 - 45° | Exit Ø 60,3 x 2,0 | stainless steel 1.4301
Article Number
806014501
Branch Ø 60,3 x 2,0 - 45° is available to buy in increments of 1
Availability

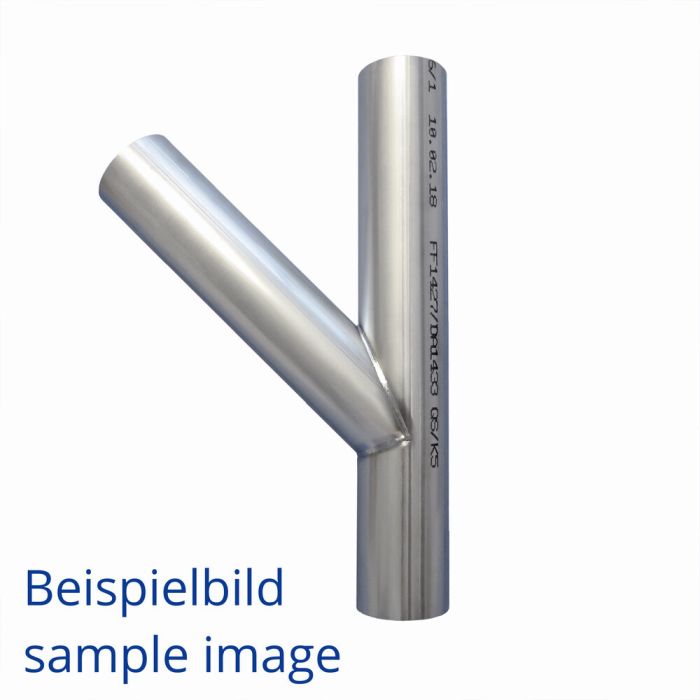

Stainless steel Y-Branch-Pipes, 45°
Main diameter: 60,3 x 2,0 mm
Outlet diameter: 60,3 x 2,0 mm
Material: Stainless steel 1.4301 (AISI 304)
- laser-cut and welded -
Main diameter: 60,3 x 2,0 mm
Outlet diameter: 60,3 x 2,0 mm
Material: Stainless steel 1.4301 (AISI 304)
- laser-cut and welded -
| Diameter [mm] | 60.30 |
|---|---|
| Wall thickness [mm] | 2.00 |
| Diameter (small) [mm] | 60.30 |
| Wall thickness (small Ø) [mm] | 2.00 |
| Angle [°] | 45.0 |
| Length A [mm] | 350.00 |
| Length B [mm] | 100.00 |
| Length C [mm] | 222.00 |
| Length C2 [mm] | 209.50 |
| Material | 14301 |
| Welding type | Outside tight welded |
| Processing | laser-cut and welded |
| Surface | 0 |
| HVA-Niro® | no |
