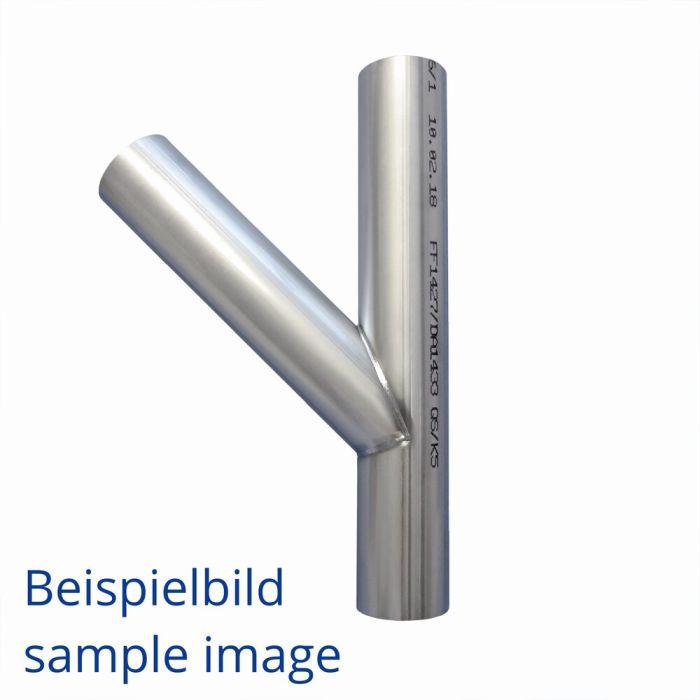

Branch Ø 65,0 x 2,0 - 45°
Main diameter: 65,0 x 2,0 mm
Outlet diameter: 65,0 x 2,0 mm
Material: stainless steel 1.4301 (AISI 304)
laser-cut and welded
Diameter | 65,00 mm |
---|---|
Wall thickness | 2,00 mm |
Diameter (small) | 65,00 mm |
Wall thickness (small Ø) | 2,00 mm |
Angle | 45,0 ° |
Length A | 350,00 mm |
Length B | 145,00 mm |
Length C | 233,00 mm |
Length C2 | 219,54 mm |
Length C3 | 154,54 mm |
Material | 1.4301 |
Welding type | Outside tight welded |
Processing | laser-cut and welded |
Surface | 0 |
HVA-Niro® | no |
