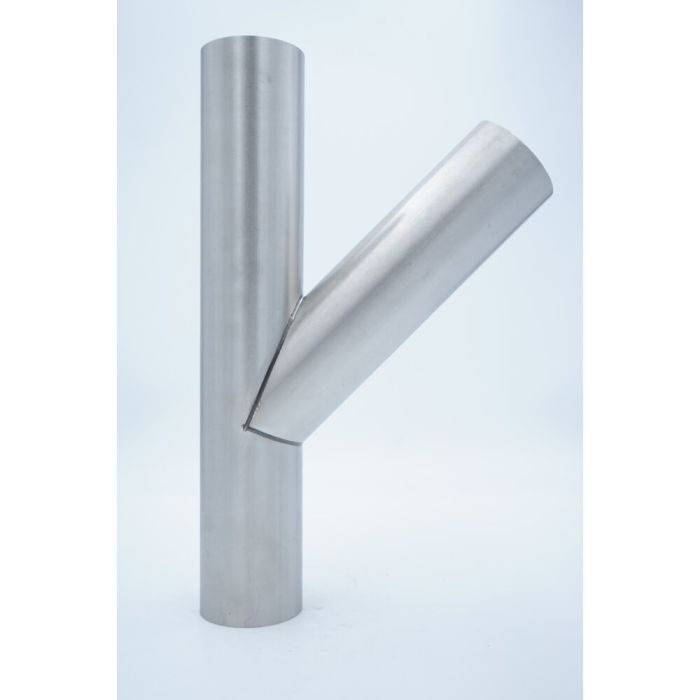

Branch Ø 76,1 x 2,0 - 45°
Branch Ø 76,1 x 2,0 - 45° | Exit Ø 76,1 x 2,0 | stainless steel 1.4301
Article Number
807614501
Branch Ø 76,1 x 2,0 - 45° is available to buy in increments of 1
Availability
Stainless steel Y-Branch-Pipes, 45°
Main diameter: 76.1 x 2.0 mm
Outlet diameter: 76,1 X 2,0 mm
material no. 1.4301 (AISI 304)
- laser-cut and welded -
Main diameter: 76.1 x 2.0 mm
Outlet diameter: 76,1 X 2,0 mm
material no. 1.4301 (AISI 304)
- laser-cut and welded -
| Diameter [mm] | 76.10 |
|---|---|
| Wall thickness [mm] | 2.00 |
| Diameter (small) [mm] | 76.10 |
| Wall thickness (small Ø) [mm] | 2.00 |
| Angle [°] | 45.0 |
| Length A [mm] | 410.00 |
| Length B [mm] | 140.00 |
| Length C [mm] | 276.00 |
| Length C2 [mm] | 260.24 |
| Length C3 [mm] | 184.14 |
| Material | 14301 |
| Welding type | Outside tight welded |
| Processing | laser-cut and welded |
| Surface | 0 |
| HVA-Niro® | no |
