DVK 6 Ø 100,0
DVK 6 Ø 100,0 | Standard - length 150 mm | black natural rubber
Article Number
410035H02
DVK 6 Ø 100,0 is available to buy in increments of 1
Availability

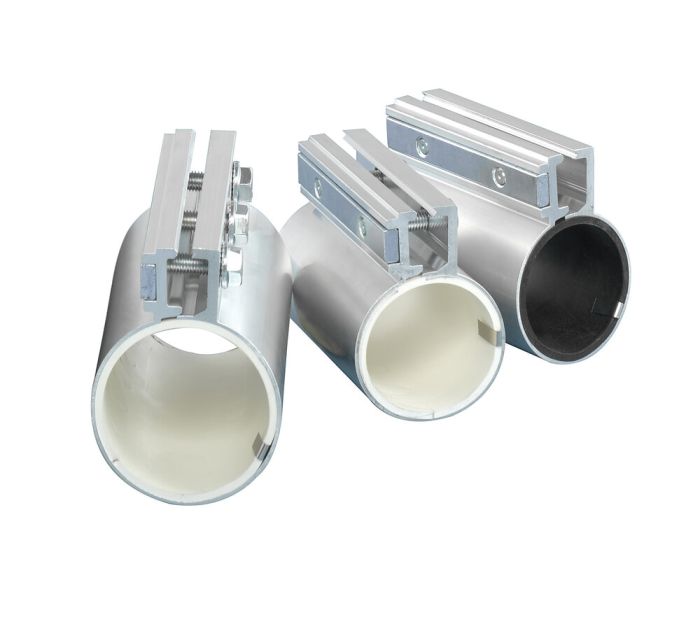

aluminium die-cast coupling type DVK 6
for outer pipe diametre 100.0 mm
with black gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 150 mm with 3 bolts M8
resistant to vacuum up to 5000 mm wh (water head)
resistant to pressure up to 1.5 bars
temperature resistant up to 60° C
with grounding strip
for outer pipe diametre 100.0 mm
with black gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 150 mm with 3 bolts M8
resistant to vacuum up to 5000 mm wh (water head)
resistant to pressure up to 1.5 bars
temperature resistant up to 60° C
with grounding strip
| Type | DVK 6 |
|---|---|
| Model | Standard |
| Diameter [mm] | 100.00 |
| Coupling length [mm] | 150 |
| Gasket material | black natural rubber |
| Material | AlMgSi 0,5 F22 |
| Compressive strength [bar] | 1.5 |
| Vacuum resistance [bar] | -0.5 |
| Screws | bolts galvanized |
| Number of screws | 3 |
| Anodized | no |
