DVK 6 Ø 104,0
DVK 6 Ø 104,0 | Standard - length 100 mm | black natural rubber
Article Number
410435H01
DVK 6 Ø 104,0 is available to buy in increments of 1
Availability

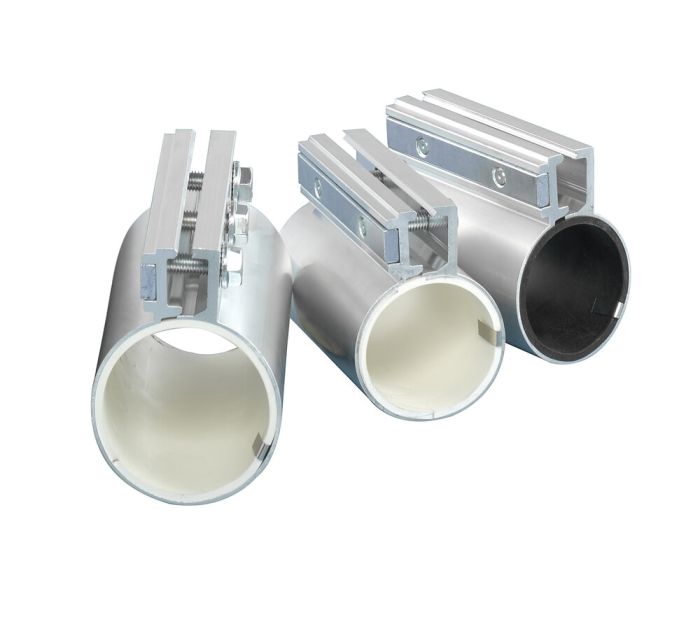

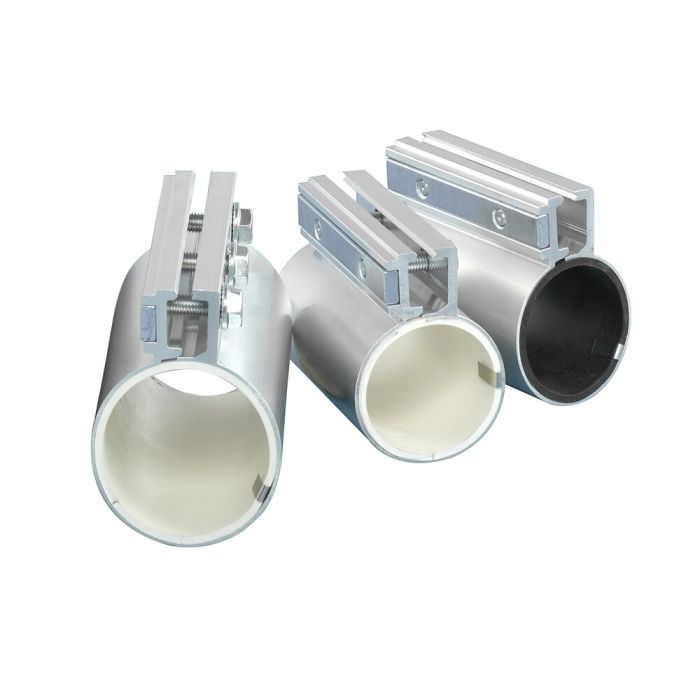

aluminium die-cast coupling type DVK 6
for outer pipe diametre 104.0 mm
with black gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 100 mm with 2 bolts M8
resistant to vacuum up to 5000 mm wh (water head)
resistant to pressure up to 0.5 bar
temperature resistant up to 60° C
with grounding strip
for outer pipe diametre 104.0 mm
with black gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 100 mm with 2 bolts M8
resistant to vacuum up to 5000 mm wh (water head)
resistant to pressure up to 0.5 bar
temperature resistant up to 60° C
with grounding strip
| Type | DVK 6 |
|---|---|
| Model | Standard |
| Diameter | 104,00 mm |
| Coupling length | 100 mm |
| Gasket material | black natural rubber |
| Material | AlMgSi 0,5 F22 |
| Compressive strength | 0,5 bar |
| Vacuum resistance | -0,5 bar |
| Screws | bolts galvanized |
| Number of screws | 2 Stk |
| Anodized | no |
Some downloads can only be viewed in logged-in state. If a desired download is not available, please feel free to contact us directly.
| Art | Beschreibung | Sprache | Dateigröße |
|---|
