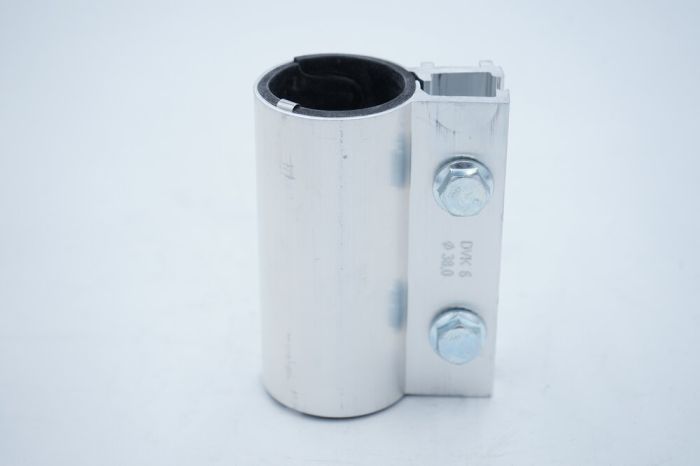

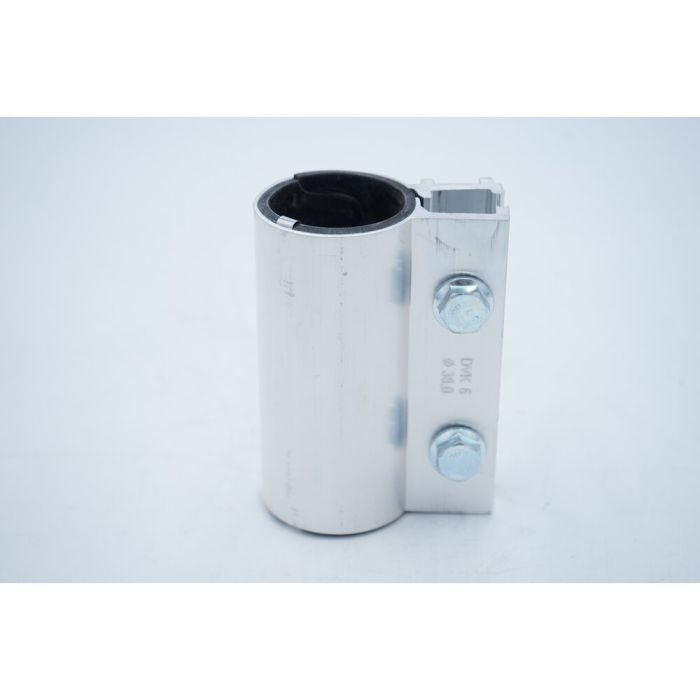

DVK 6 Ø 38,0
for outer pipe diametre 38.0 mm,
with black natural rubber gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 100 mm with 2 bolts M8
resistant to vaccum up to 6000 mm wh (water head)
resistant to pressure up to 6 bars
temperature resistant up to 60°C
with grounding strip
Type | DVK 6 |
---|---|
Model | Standard |
Diameter | 38,00 mm |
Coupling length | 100 mm |
Gasket material | black natural rubber |
Material | AlMgSi 0,5 F22 |
Compressive strength | 6,0 bar |
Vacuum resistance | -0,6 bar |
Screws | bolts galvanized |
Number of screws | 2 Stk |
Anodized | no |
