DVK 6 Ø 50,0
DVK 6 Ø 50,0 | Standard - length 150 mm | black natural rubber
Article Number
405035H02
DVK 6 Ø 50,0 is available to buy in increments of 1
Availability

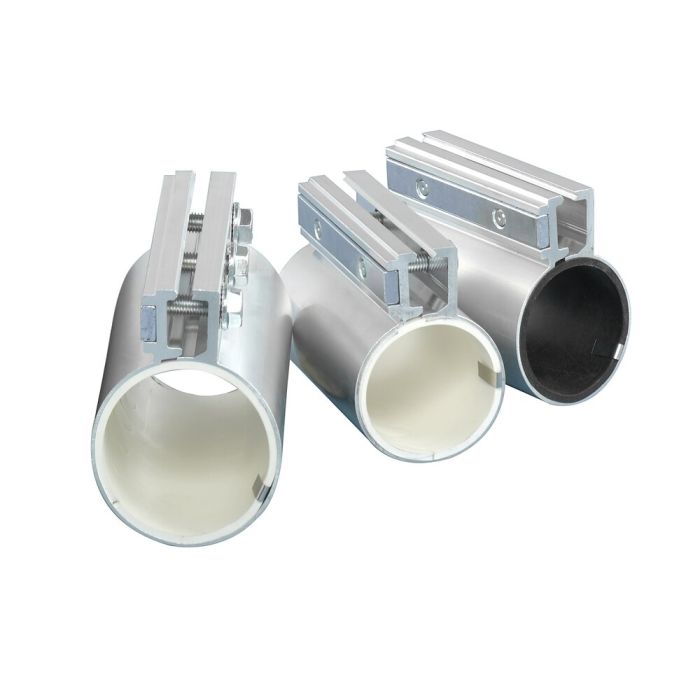

aluminium die-cast coupling type DVK 6
for outer pipe diametre 50.0 mm,
with black gasket in natural rubber,
material: AlMgSi 0,5 F22
screws galvanized,
length: 150 mm with 3 screws M8
vacuum-proof until 6000 mm WH
resistant to pressure up to 6 bars
temperature-resistant up to 60°C
with grounding strip
for outer pipe diametre 50.0 mm,
with black gasket in natural rubber,
material: AlMgSi 0,5 F22
screws galvanized,
length: 150 mm with 3 screws M8
vacuum-proof until 6000 mm WH
resistant to pressure up to 6 bars
temperature-resistant up to 60°C
with grounding strip
| Type | DVK 6 |
|---|---|
| Model | Standard |
| Diameter [mm] | 50.00 |
| Coupling length [mm] | 150 |
| Gasket material | black natural rubber |
| Material | AlMgSi 0,5 F22 |
| Compressive strength [bar] | 6.0 |
| Vacuum resistance [bar] | -0.6 |
| Screws | bolts galvanized |
| Number of screws | 3 |
| Anodized | no |
