DVK 6 Ø 54,0
DVK 6 Ø 54,0 | Standard - length 150 mm | black natural rubber
Article Number
405435H02
DVK 6 Ø 54,0 is available to buy in increments of 1
Availability

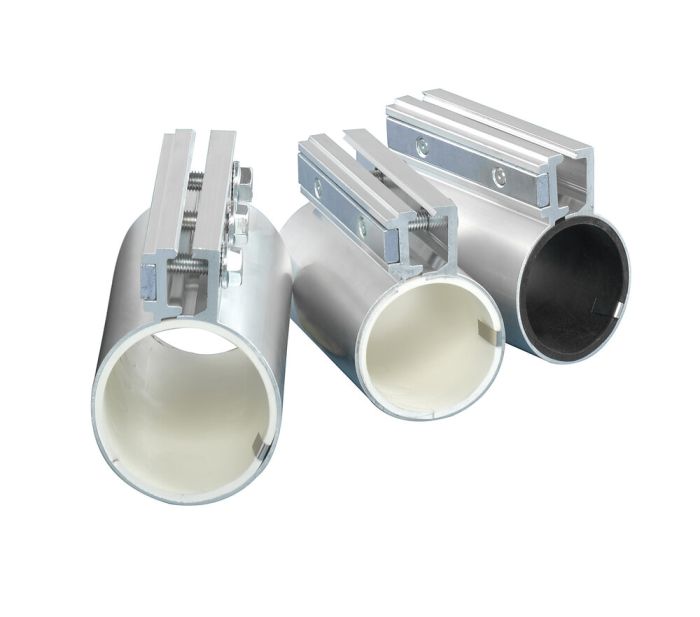

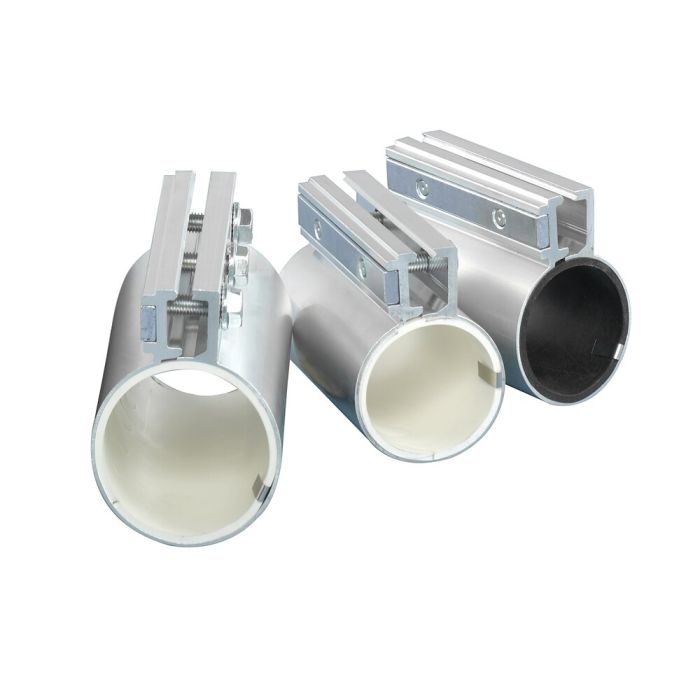

aluminium die-cast coupling type DVK 6
for outer pipe diametre 54.0 mm,
with black natural rubber gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 150 mm with 3 bolts M8
resistant to vacuum up to 6000 mm wh (water head)
resistant to pressure up to 6 bars
temperature resistant up to 60°C
with grounding strip
for outer pipe diametre 54.0 mm,
with black natural rubber gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 150 mm with 3 bolts M8
resistant to vacuum up to 6000 mm wh (water head)
resistant to pressure up to 6 bars
temperature resistant up to 60°C
with grounding strip
| Type | DVK 6 |
|---|---|
| Model | Standard |
| Diameter | 54,00 mm |
| Coupling length | 150 mm |
| Gasket material | black natural rubber |
| Material | AlMgSi 0,5 F22 |
| Compressive strength | 6,0 bar |
| Vacuum resistance | -0,6 bar |
| Screws | bolts galvanized |
| Number of screws | 3 Stk |
| Anodized | no |
