DVK 6 Ø 60,3
DVK 6 Ø 60,3 | Standard - length 100 mm | black natural rubber
Article Number
406035H01
DVK 6 Ø 60,3 is available to buy in increments of 1
Availability

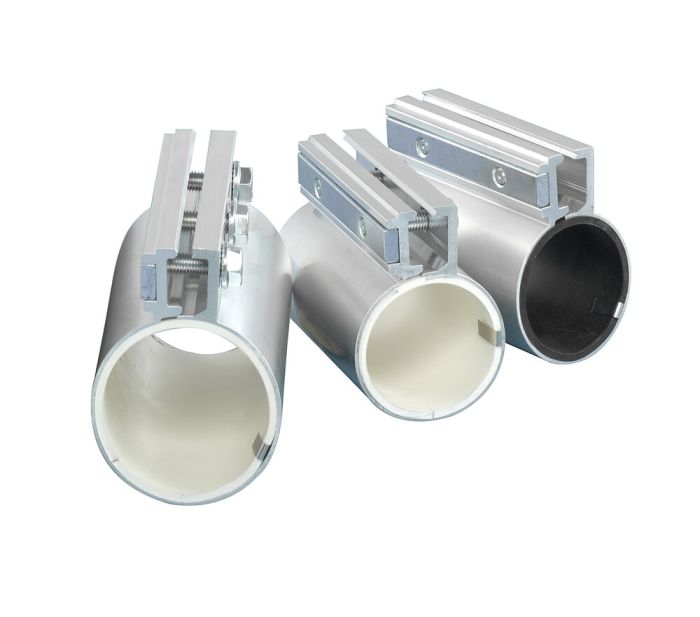

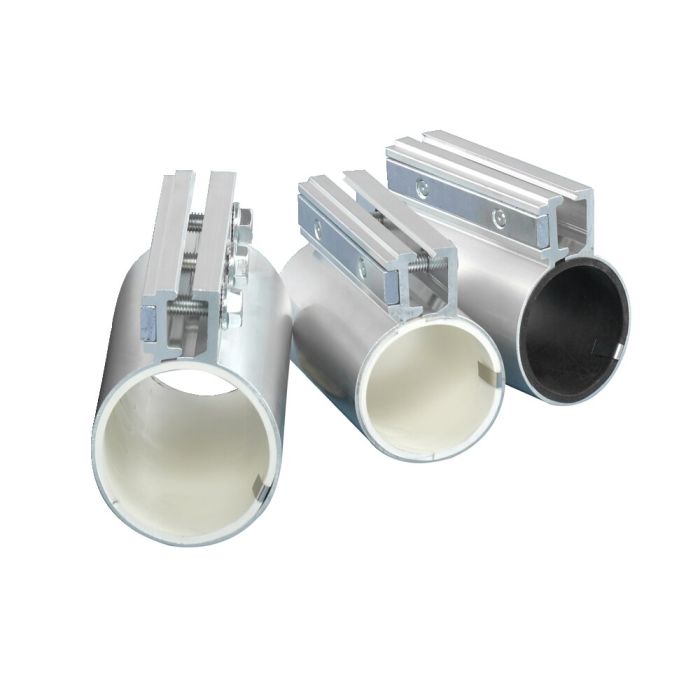

aluminium die-cast coupling type DVK 6
for outer pipe diametre 60.3 mm,
with black natural rubber gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 100 mm with 2 bolts M8
resistant to vaccum up to 6000 mm wh (water head)
resistant to pressure up to 6 bars
temperature resistant up to 60°C
with grounding strip
for outer pipe diametre 60.3 mm,
with black natural rubber gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 100 mm with 2 bolts M8
resistant to vaccum up to 6000 mm wh (water head)
resistant to pressure up to 6 bars
temperature resistant up to 60°C
with grounding strip
| Type | DVK 6 |
|---|---|
| Model | Standard |
| Diameter | 60,30 mm |
| Coupling length | 100 mm |
| Gasket material | black natural rubber |
| Material | AlMgSi 0,5 F22 |
| Compressive strength | 6,0 bar |
| Vacuum resistance | -0,6 bar |
| Screws | bolts galvanized |
| Number of screws | 2 Stk |
| Anodized | no |
