DVK 6 Ø 60,3
DVK 6 Ø 60,3 | Standard - length 150 mm | black natural rubber
Article Number
406035H02
DVK 6 Ø 60,3 is available to buy in increments of 1
Availability

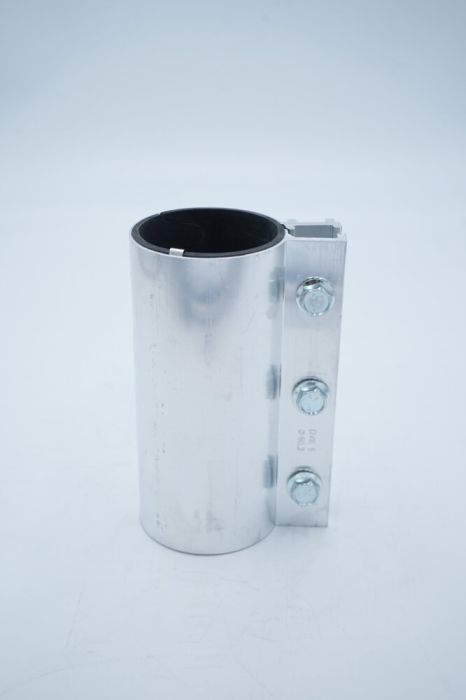

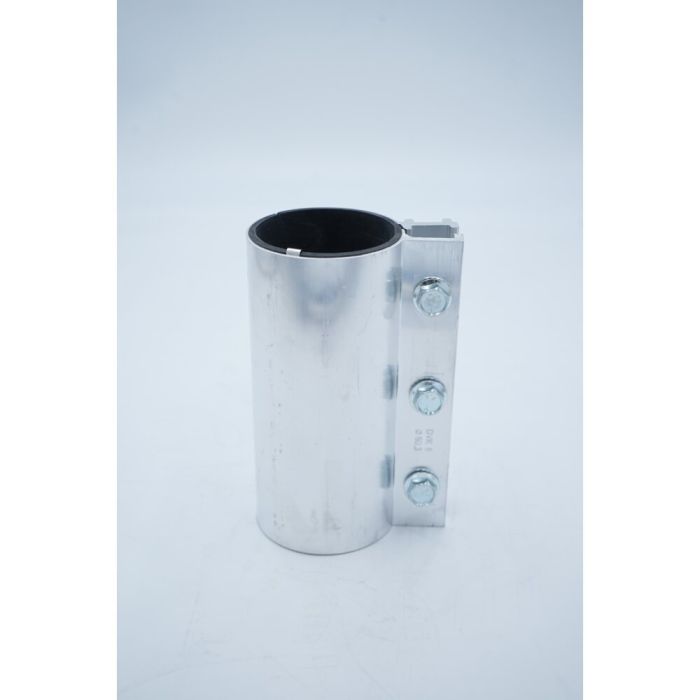

aluminium die-cast coupling type DVK 6
for outer pipe diameter 60.3 mm,
with black natural rubber gasket,
material: AlMgSi 0,5 F22
bolts galvanized,
length: 150 mm with 3 bolts M8
vacuum-proof until 6000 mm WH
pressure-resistant up to 6 bars
temperature-resistant up to 60°C
with grounding strip
for outer pipe diameter 60.3 mm,
with black natural rubber gasket,
material: AlMgSi 0,5 F22
bolts galvanized,
length: 150 mm with 3 bolts M8
vacuum-proof until 6000 mm WH
pressure-resistant up to 6 bars
temperature-resistant up to 60°C
with grounding strip
| Type | DVK 6 |
|---|---|
| Model | Standard |
| Diameter [mm] | 60.30 |
| Coupling length [mm] | 150 |
| Gasket material | black natural rubber |
| Material | AlMgSi 0,5 F22 |
| Compressive strength [bar] | 6.0 |
| Vacuum resistance [bar] | -0.6 |
| Screws | bolts galvanized |
| Number of screws | 3 |
| Anodized | no |
