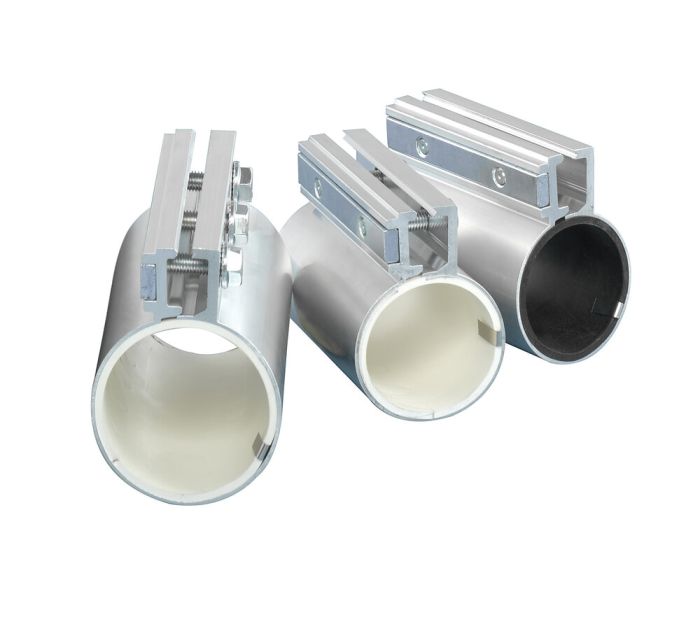

DVK 6 Ø 63,5
for outer pipe diametre 63.5 mm,
with black natural rubber gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 150 mm with 3 bolts M8
pressure-resistant up to 6 bars
resistant to vaccum up to 6000 mm wh (water head)
temperature resistant up to 60° C
with grounding strip
Type | DVK 6 |
---|---|
Model | Standard |
Diameter | 63,50 mm |
Coupling length | 150 mm |
Gasket material | black natural rubber |
Material | AlMgSi 0,5 F22 |
Compressive strength | 6,0 bar |
Vacuum resistance | -0,6 bar |
Screws | bolts galvanized |
Number of screws | 3 Stk |
Anodized | no |
