DVK 6 Ø 70,0
DVK 6 Ø 70,0 | Standard - length 100 mm | black natural rubber
Article Number
407035H01
DVK 6 Ø 70,0 is available to buy in increments of 1
Availability

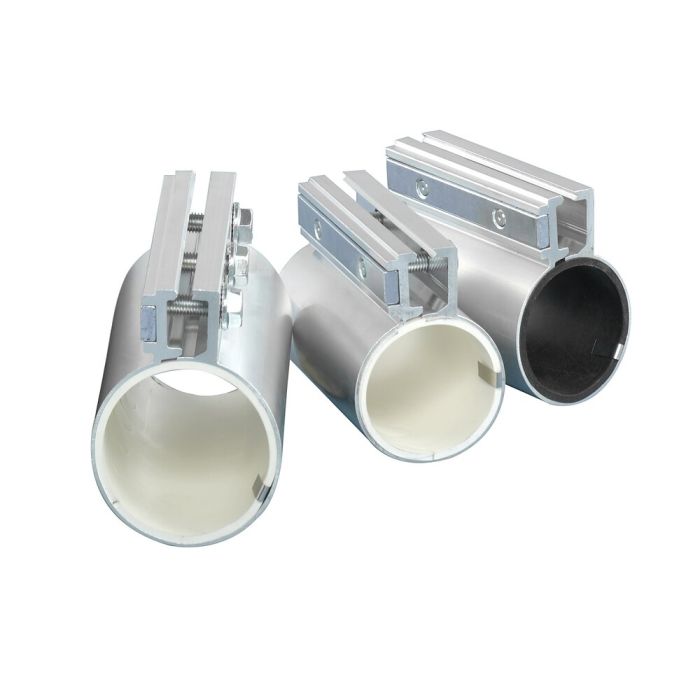

aluminium die-cast coupling type DVK 6
for outer pipe diametre 70.0 mm,
with black natural rubber gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 100 mm with 2 bolts M8
resistant to vaccum up to 5000 mm wh (water head)
resistant to pressure up to 3,5 bar
temperature resistant up to 60°C
with grounding strip
for outer pipe diametre 70.0 mm,
with black natural rubber gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 100 mm with 2 bolts M8
resistant to vaccum up to 5000 mm wh (water head)
resistant to pressure up to 3,5 bar
temperature resistant up to 60°C
with grounding strip
| Type | DVK 6 |
|---|---|
| Model | Standard |
| Diameter [mm] | 70.00 |
| Coupling length [mm] | 100 |
| Gasket material | black natural rubber |
| Material | AlMgSi 0,5 F22 |
| Compressive strength [bar] | 3.5 |
| Vacuum resistance [bar] | -0.5 |
| Screws | bolts galvanized |
| Number of screws | 2 |
| Anodized | no |
