DVK 6 Ø 76,1
DVK 6 Ø 76,1 | quick release - length 150 mm | white EPDM
Article Number
407634H06
DVK 6 Ø 76,1 is available to buy in increments of 1
Availability

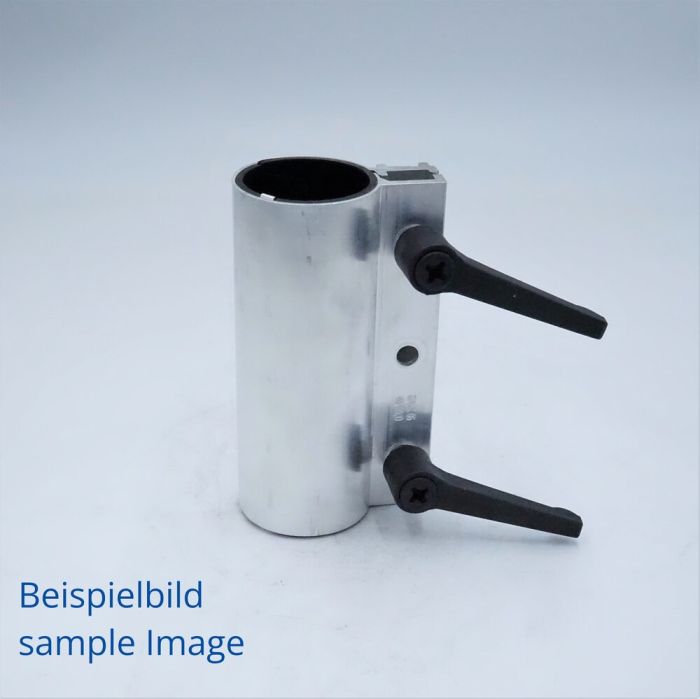

aluminium die-cast coupling type DVK 6 - quick closure
for outer pipe diametre 76.1 mm,
with white EPDM gasket,
material: AlMgSi 0.5 F22
length: 150 mm with 2 clamping leavers
resistant to vaccum up to 4000 mm wh (water head)
resistant to pressure till 2 bars
temperature resistant till 120°C
with grounding strip
for outer pipe diametre 76.1 mm,
with white EPDM gasket,
material: AlMgSi 0.5 F22
length: 150 mm with 2 clamping leavers
resistant to vaccum up to 4000 mm wh (water head)
resistant to pressure till 2 bars
temperature resistant till 120°C
with grounding strip
| Type | DVK 6 |
|---|---|
| Model | quick release |
| Diameter [mm] | 76.10 |
| Coupling length [mm] | 150 |
| Gasket material | white EPDM |
| Material | AlMgSi 0,5 F22 |
| Compressive strength [bar] | 2.0 |
| Vacuum resistance [bar] | -0.4 |
| Screws | bolts galvanized |
| Number of screws | 0 |
| Temperature min. [°C] | -30 |
| Temperature max. [°C] | 100 |
| Anodized | no |
