DVK-HD® Ø 100,0
DVK-HD® Ø 100,0 | Standard - length 200 mm | Nitril
Article Number
410036H67
DVK-HD® Ø 100,0 is available to buy in increments of 1
Availability

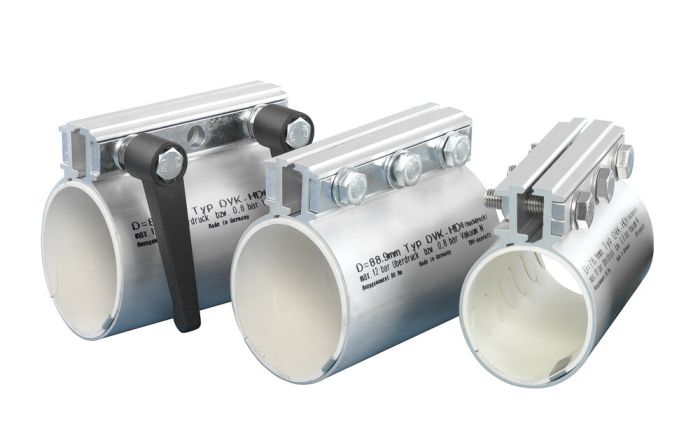

aluminium die-cast coupling type DVK HD - High pressure
for outer pipe diameter 100.0 mm
with white nitrile gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 200 mm with 4 bolts M12
resistant to vacuum up to 8000 mm wh (water head)
resistant to pressure up to 11 bars
temperature resistant up to 80° C
with grounding strip
Please absolutely note our mounting instructions.
for outer pipe diameter 100.0 mm
with white nitrile gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 200 mm with 4 bolts M12
resistant to vacuum up to 8000 mm wh (water head)
resistant to pressure up to 11 bars
temperature resistant up to 80° C
with grounding strip
Please absolutely note our mounting instructions.
| Type | DVK HD |
|---|---|
| Model | Standard |
| Diameter | 100,00 mm |
| Coupling length | 200 mm |
| Gasket material | Nitril |
| Material | AlMgSi 0,5 F22 |
| Compressive strength | 11,0 bar |
| Vacuum resistance | -0,8 bar |
| Screws | bolts galvanized |
| Number of screws | 4 Stk |
| Temperature min. | -25 °C |
| Temperature max. | 80 °C |
| Anodized | no |
