DVK-HD® Ø 159,0
DVK-HD® Ø 159,0 | Standard - length 150 mm | Nitril
Article Number
415936H66
DVK-HD® Ø 159,0 is available to buy in increments of 1
Availability

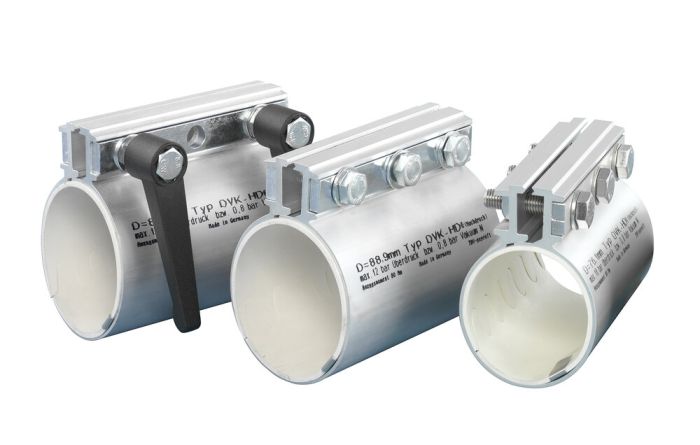

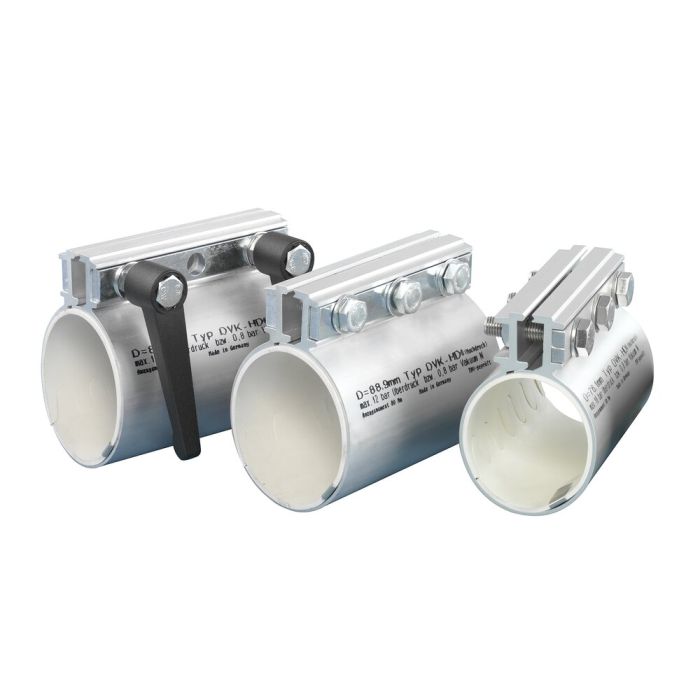

aluminium coupling type DVK HD - High pressure
for outer pipe diameter 159.0 mm
with white nitrile gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 150 mm with 3 bolts M12
resistant to vacuum up to 8000 mm wh (water head)
resistant to pressure up to 1 bars
temperature resistant up to 80° C
with grounding strip
Please absolutely note our mounting instructions.
for outer pipe diameter 159.0 mm
with white nitrile gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 150 mm with 3 bolts M12
resistant to vacuum up to 8000 mm wh (water head)
resistant to pressure up to 1 bars
temperature resistant up to 80° C
with grounding strip
Please absolutely note our mounting instructions.
| Type | DVK HD |
|---|---|
| Model | Standard |
| Diameter [mm] | 159.00 |
| Coupling length [mm] | 150 |
| Gasket material | Nitril |
| Material | AlMgSi 0,5 F22 |
| Compressive strength [bar] | 1.0 |
| Vacuum resistance [bar] | -0.8 |
| Screws | bolts galvanized |
| Number of screws | 3 |
| Temperature min. [°C] | -25 |
| Temperature max. [°C] | 80 |
| Anodized | no |
