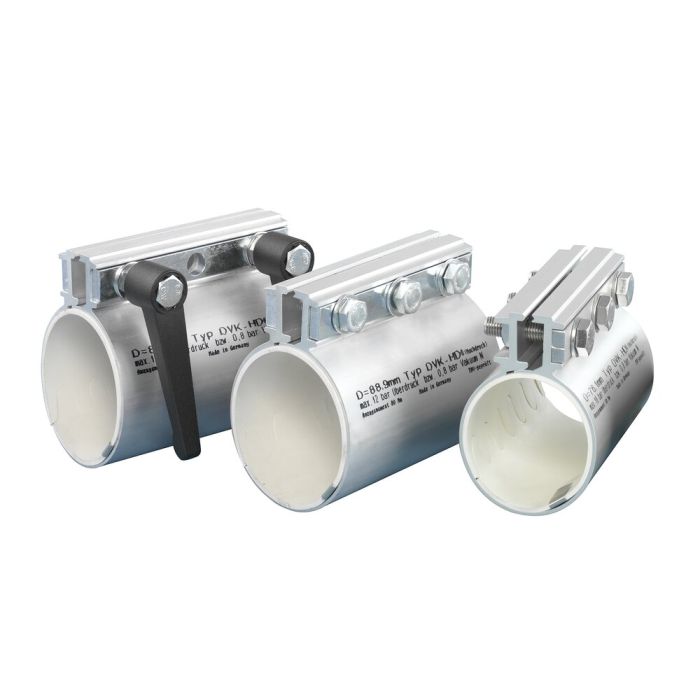

DVK-HD® Ø 168,3
for outer pipe diameter 168.3 mm
with white nitrile gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 150 mm with 3 bolts M12
resistant to vacuum up to 4000 mm wh (water head)
resistant to pressure up to 1 bars
temperature resistant up to 80° C
with grounding strip
Please absolutely note our mounting instructions.
Type | DVK HD |
---|---|
Model | Standard |
Diameter | 168,30 mm |
Coupling length | 150 mm |
Gasket material | Nitril |
Material | AlMgSi 0,5 F22 |
Compressive strength | 1,0 bar |
Vacuum resistance | -0,4 bar |
Screws | bolts galvanized |
Number of screws | 3 Stk |
Temperature min. | -25 °C |
Temperature max. | 80 °C |
Anodized | no |
