DVK-HD® Ø 60,3
DVK-HD® Ø 60,3 | Standard - length 200 mm | Nitril
Article Number
406036H67
DVK-HD® Ø 60,3 is available to buy in increments of 1
Availability

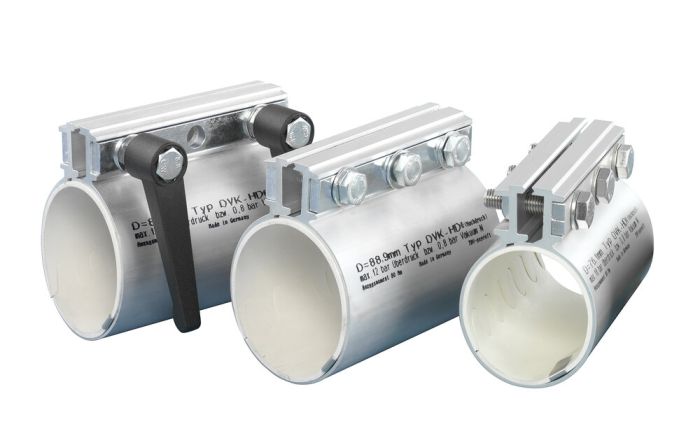

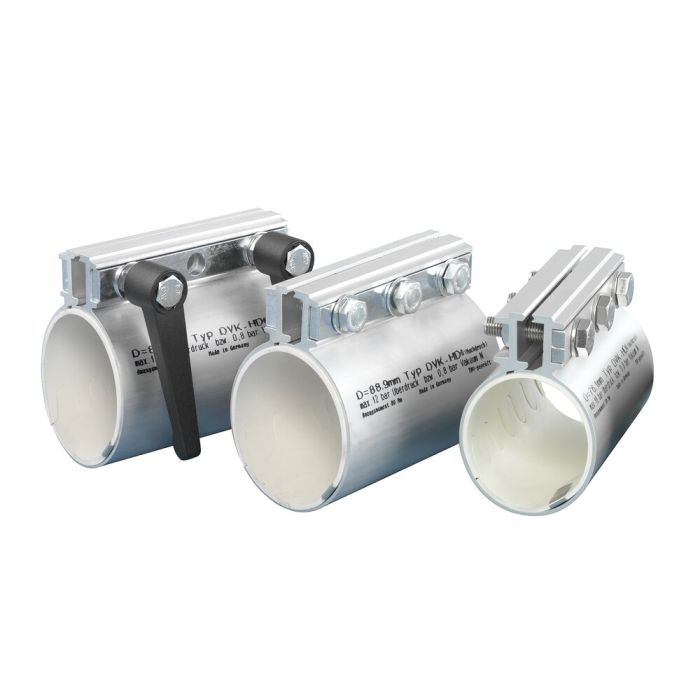

aluminium die-cast coupling type DVK HD-High pression
for outer pipe diametre 60,3 mm
with white nitrile gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 200 mm with 4 bolts M12
resistant to vaccum up to 8000 mm wh (water head)
resistant to pressure up to 20 bars
temperature resistant up to 80°C
with grounding strip
Please absolutely note our mounting instructions.
for outer pipe diametre 60,3 mm
with white nitrile gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 200 mm with 4 bolts M12
resistant to vaccum up to 8000 mm wh (water head)
resistant to pressure up to 20 bars
temperature resistant up to 80°C
with grounding strip
Please absolutely note our mounting instructions.
| Type | DVK HD |
|---|---|
| Model | Standard |
| Diameter [mm] | 60.30 |
| Coupling length [mm] | 200 |
| Gasket material | Nitril |
| Material | AlMgSi 0,5 F22 |
| Compressive strength [bar] | 20.0 |
| Vacuum resistance [bar] | -0.8 |
| Screws | bolts galvanized |
| Number of screws | 4 |
| Temperature min. [°C] | -25 |
| Temperature max. [°C] | 80 |
| Anodized | no |
