DVK-HD® Ø 60,3
DVK-HD® Ø 60,3 | with traction relief - 150 mm | Nitril
Article Number
406038H66
DVK-HD® Ø 60,3 is available to buy in increments of 1
Availability

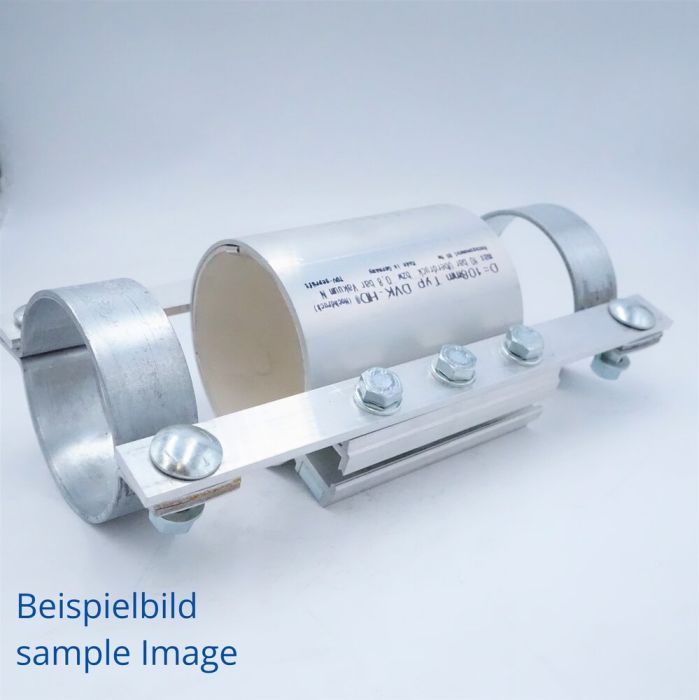

aluminium coupling type DVK HD with traction relief
to safeguard axial forces
pipe clamps and flat iron resistant to tractive forces,
for outer pipe diametre 60.3 mm
with white nitril gasket,
food-safe, UV-proof
material: AlMgSi 0.5 22
bolts galvanized
length of coupling: 150 mm with 3 bolts M12
vacuum-resistant up to 8000 mm wh (water head)
pressure-resistant up to 16 bars
temperature-resistant up to 80°C
with grounding strip
consisting of:
1 coupling and the mounted bridging part
(2 aluminium tongues and 2 pipe clamps of galvanized steel)
to safeguard axial forces
pipe clamps and flat iron resistant to tractive forces,
for outer pipe diametre 60.3 mm
with white nitril gasket,
food-safe, UV-proof
material: AlMgSi 0.5 22
bolts galvanized
length of coupling: 150 mm with 3 bolts M12
vacuum-resistant up to 8000 mm wh (water head)
pressure-resistant up to 16 bars
temperature-resistant up to 80°C
with grounding strip
consisting of:
1 coupling and the mounted bridging part
(2 aluminium tongues and 2 pipe clamps of galvanized steel)
| Type | DVK HD |
|---|---|
| Model | with traction relief |
| Diameter [mm] | 60.30 |
| Coupling length [mm] | 150 |
| Gasket material | Nitril |
| Material | AlMgSi 0,5 F22 |
| Compressive strength [bar] | 16.0 |
| Vacuum resistance [bar] | -0.8 |
| Screws | bolts galvanized |
| Number of screws | 3 |
| Temperature min. [°C] | -25 |
| Temperature max. [°C] | 80 |
| Anodized | no |
