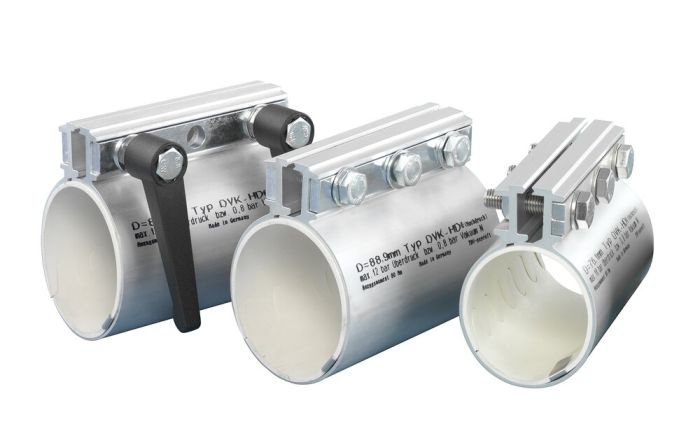

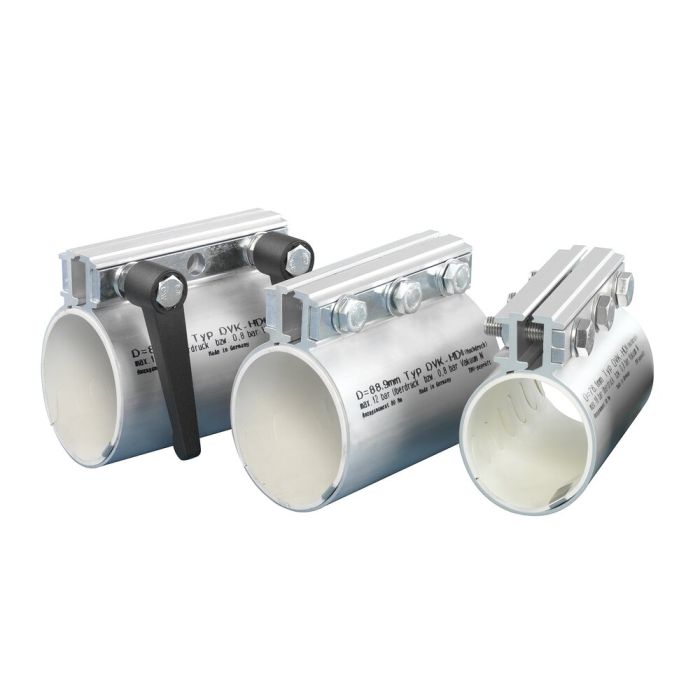

DVK-HD® Ø 80,0
for outer pipe diameter 80.0 mm
with white nitrile gasket,
material: AlMgSi 0.5 F22
bolts galvanized,
length: 200 mm with 4 bolts M12
resistant to vacuum up to 8000 mm wh (water head)
resistant to pressure up to 18 bars
temperature resistant up to 80° C
with grounding strip
Please absolutely note our mounting instructions.
Type | DVK HD |
---|---|
Model | Standard |
Diameter | 80,00 mm |
Coupling length | 200 mm |
Gasket material | Nitril |
Material | AlMgSi 0,5 F22 |
Compressive strength | 18,0 bar |
Vacuum resistance | -0,8 bar |
Screws | bolts galvanized |
Number of screws | 4 Stk |
Temperature min. | -25 °C |
Temperature max. | 80 °C |
Anodized | no |
