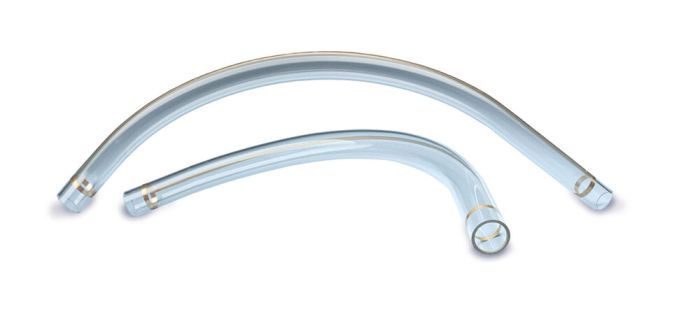

Glass pipe bend Ø 47 x 5
Glass pipe bend Ø 47 x 5 | R 500 - 90° - leg 100/100 | Borosilicateglas 3.3
Article Number
1047GL503
Glass pipe bend Ø 47 x 5 is available to buy in increments of 1
Availability
glass pipe bend, D = 47.0 x 5.0 mm
radius 500 mm, 90°
with leg extension of 100 mm each side
material: borosilicate 3.3
pipe ends fire polished
with copper grounding strip attached on the outer radius
radius 500 mm, 90°
with leg extension of 100 mm each side
material: borosilicate 3.3
pipe ends fire polished
with copper grounding strip attached on the outer radius
| Diameter [mm] | 47.00 |
|---|---|
| Wall thickness [mm] | 5.00 |
| Radius [mm] | 500.00 |
| Angle [°] | 90.0 |
| Leg extension (short side) [mm] | 100.0 |
| Leg extension (long side) [mm] | 100.0 |
| Material | borosilicate glass 3.3 |
| Copper grounding strip | with copper grounding strip attached on the outer radius |
| Pipe ends | fire polished |
