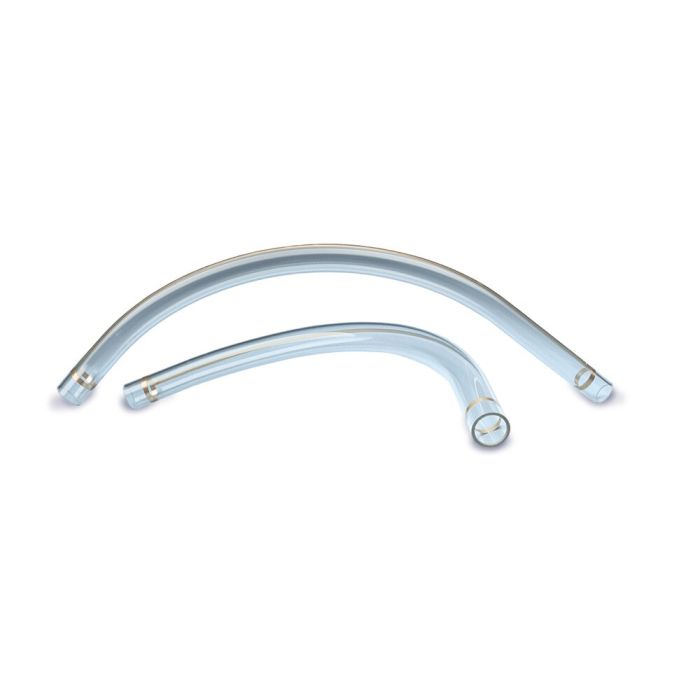

Glass pipe bend Ø 66 x 5
Glass pipe bend Ø 66 x 5 | R 500 - 45° - leg 200/200 | Borosilicateglas 3.3
Article Number
1066GL503
Glass pipe bend Ø 66 x 5 is available to buy in increments of 1
Availability
glass pipe-bend, D = 66.0 x 5.0 mm
radius 500 mm, 45°
with 200 mm leg extension each side
material: Borosilicate 3.3
pipe ends fire-polished
with copper grounding strip attached at the outer radius
edge distance of the copper strip: 50 mm
radius 500 mm, 45°
with 200 mm leg extension each side
material: Borosilicate 3.3
pipe ends fire-polished
with copper grounding strip attached at the outer radius
edge distance of the copper strip: 50 mm
| Diameter [mm] | 66.00 |
|---|---|
| Wall thickness [mm] | 5.00 |
| Radius [mm] | 500.00 |
| Angle [°] | 45.0 |
| Leg extension (short side) [mm] | 200.0 |
| Leg extension (long side) [mm] | 200.0 |
| Material | borosilicate glass 3.3 |
| Copper grounding strip | with copper grounding strip attached on the outer radius |
| Pipe ends | fire polished |
