Master PUR-H Ø 40
Master PUR-H Ø 40 | polyurethane | roll length 10 mtr.
Article Number
7040MAPU1-1
Master PUR-H Ø 40 is available to buy in increments of 1
Availability

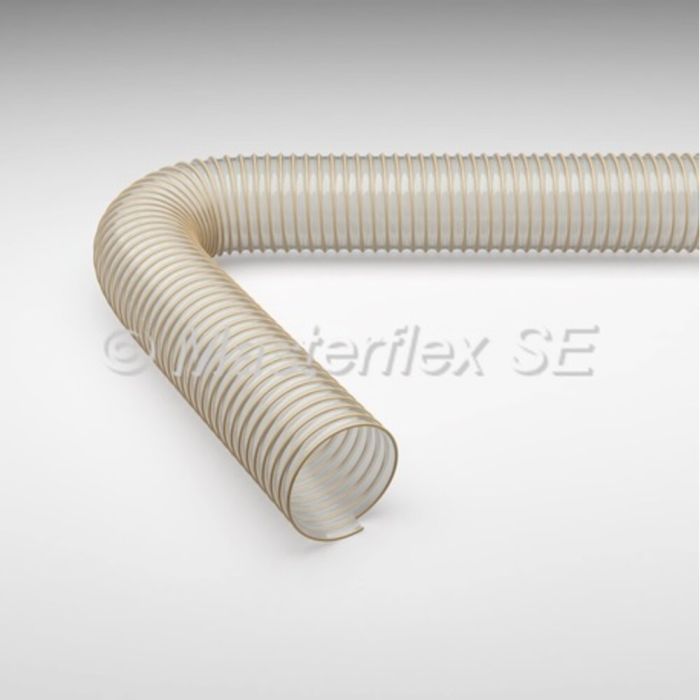

polyurethane hose for diameter 40 mm
Master-PUR H
for feeding of granules, highly resistant to abrasion,
with inner spring spiral made of steel,
nearly smooth inside, optimum flow characteristics,
acc. to TRBS 2153 (zone 1,21)
temperature range: -40° C to +90° C approx.
wall thickness between spirals approx. 1.4 mm
role length: 10 mtr.
Master-PUR H
for feeding of granules, highly resistant to abrasion,
with inner spring spiral made of steel,
nearly smooth inside, optimum flow characteristics,
acc. to TRBS 2153 (zone 1,21)
temperature range: -40° C to +90° C approx.
wall thickness between spirals approx. 1.4 mm
role length: 10 mtr.
| Type | Master-PUR H |
|---|---|
| Diameter [mm] | 40.00 |
| Wall thickness [mm] | 1.4 |
| Outer diameter [mm] | 49.00 |
| Roll length [mm] | 10 |
| Material | polyurethane |
| Material spiral | spring spiral made of steel |
| min. bending radius [mm] | 72.00 |
| Temperature min. [°C] | -40 |
| Temperature max. [°C] | 90 |
