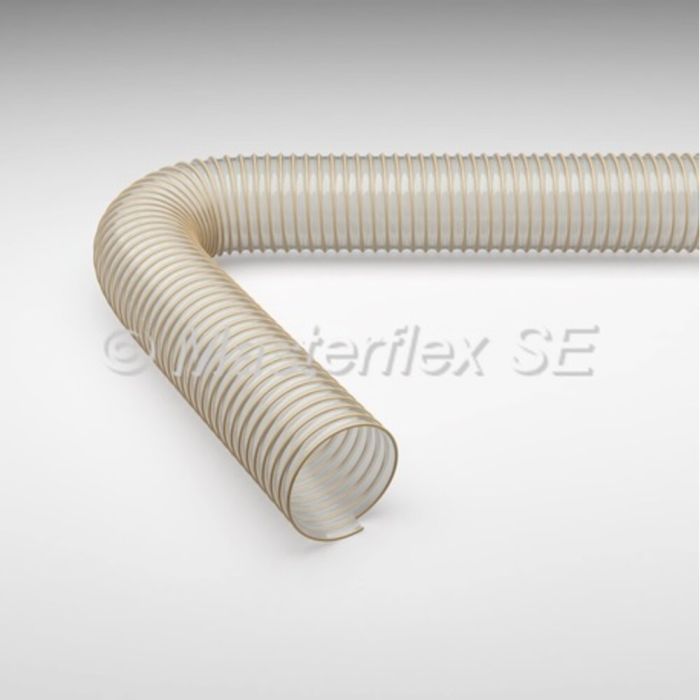

Master PUR-H Ø 50
Master PUR-H Ø 50 | polyurethane | roll length 10 mtr.
Article Number
7050MAPU1-1
Master PUR-H Ø 50 is available to buy in increments of 1
Availability
polyurethane hose for diameter 50 mm
Master-PUR H
for feeding of granules, highly resistant to abrasion,
with inner spring spiral made of steel,
nearly smooth inside, optimum flow characteristics,
acc. to TRBS 2153 (zone 1,21)
temperature range: -40° C to +90° C approx.
wall thickness between spirals approx. 1.4 mm
role length: 10 mtr.
Master-PUR H
for feeding of granules, highly resistant to abrasion,
with inner spring spiral made of steel,
nearly smooth inside, optimum flow characteristics,
acc. to TRBS 2153 (zone 1,21)
temperature range: -40° C to +90° C approx.
wall thickness between spirals approx. 1.4 mm
role length: 10 mtr.
| Type | Master-PUR H |
|---|---|
| Diameter | 50,00 mm |
| Wall thickness | 1,4 mm |
| Outer diameter | 61,00 mm |
| Roll length | 10 m |
| Material | polyurethane |
| Material spiral | spring spiral made of steel |
| min. bending radius | 87,00 mm |
| Temperature min. | -40 °C |
| Temperature max. | 90 °C |
Some downloads can only be viewed in logged-in state. If a desired download is not available, please feel free to contact us directly.
