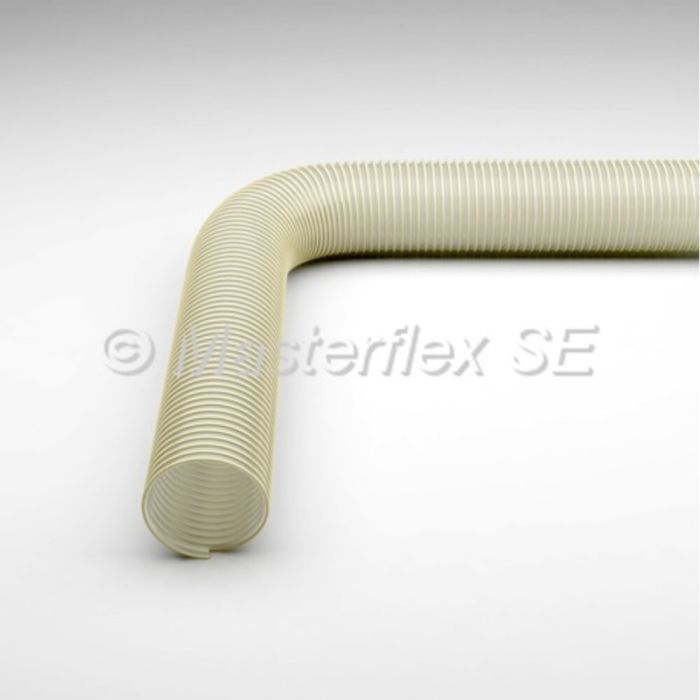

Master PUR-HX Ø 65
Master PUR-HX Ø 65 | polyurethane | roll length 10 mtr.
Article Number
7065MAPU2-1
Master PUR-HX Ø 65 is available to buy in increments of 1
Availability
polyurethane hose for diameter 65 mm
Master-PUR HX
for feeding of granules, highly resistant to abrasion,
with inner spring spiral made of steel,
nearly smooth inside, optimum flow characteristics,
extremly abrasion resistant by selective reinforcement below the spiral
temperature range: -40° C to +90° C approx.
wall thickness between spirals approx. 1.7 to 2.1 mm
role length: 10 mtr.
Master-PUR HX
for feeding of granules, highly resistant to abrasion,
with inner spring spiral made of steel,
nearly smooth inside, optimum flow characteristics,
extremly abrasion resistant by selective reinforcement below the spiral
temperature range: -40° C to +90° C approx.
wall thickness between spirals approx. 1.7 to 2.1 mm
role length: 10 mtr.
| Type | Master-PUR HX |
|---|---|
| Diameter | 65,00 mm |
| Wall thickness | 2,1 mm |
| Outer diameter | 75,00 mm |
| Roll length | 10 m |
| Material | polyurethane |
| Material spiral | spring spiral made of steel |
| min. bending radius | 165,00 mm |
| Temperature min. | -40 °C |
| Temperature max. | 90 °C |
