Pipe bend Ø 101,6 x 2,00

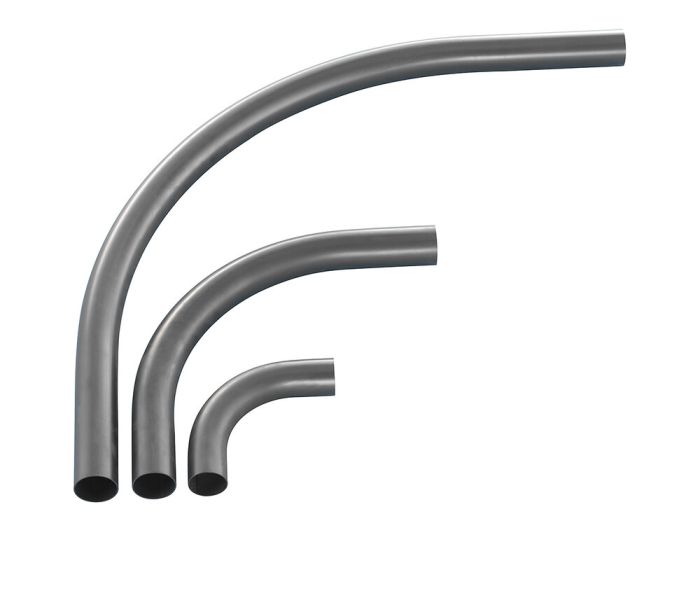

Stainless steel pipe bend, outer diameter 101.6 x 2.0 mm
radius 500 mm, 45°
with 200 mm leg extension each side
stainless steel tube - welded
Material no.: 1.4301 (AISI 304)
- highly wear-resistant -
Diameter | 101,60 mm |
---|---|
Wall thickness | 2,00 mm |
Radius | 500,00 mm |
Angle | 45,0 ° |
Leg extension (short side) | 200,0 mm |
Leg extension (long side) | 200,0 mm |
Material | 1.4301 |
Welding seam | laser welded |
Norm | EN 10217-7 |
Tolerance (norm) | ISO 1127 / D3-T3 |
HVA-Niro® | yes |
