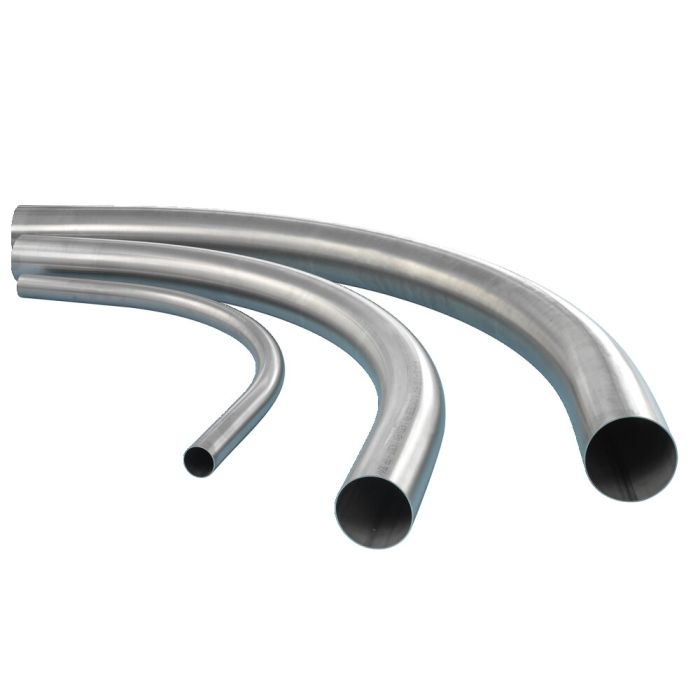

Pipe bend Ø 114,3 x 2,00
Pipe bend Ø 114,3 x 2,00 R 800 - 90° - leg 200/200 stainless steel 1.4301
Article Number
111410802
Pipe bend Ø 114,3 x 2,00 is available to buy in increments of 1
Stainless steel pipe bend, outer diameter 114.3 x 2.0 mm
radius 800 mm, 90°
with 200 mm leg extension each side
stainless steel tube - welded
Material no.: 1.4301 (AISI 304)
radius 800 mm, 90°
with 200 mm leg extension each side
stainless steel tube - welded
Material no.: 1.4301 (AISI 304)
| Diameter [mm] | 114.30 |
|---|---|
| Wall thickness [mm] | 2.00 |
| Radius [mm] | 800.00 |
| Angle [°] | 90.0 |
| Leg extension (short side) [mm] | 200.0 |
| Leg extension (long side) [mm] | 200.0 |
| Material | 14301 |
| Welding seam | laser welded, smothed |
| Norm | EN 10217-7 |
| Tolerance (norm) | ISO 1127 / D3-T3 |
| HVA-Niro® | no |
