Pipe bend Ø 133 x 3,00
Pipe bend Ø 133 x 3,00 | R 1.000 - 45° - leg 200/200 | stainless steel 1.4301
Article Number
113310004
Pipe bend Ø 133 x 3,00 is available to buy in increments of 1
Availability

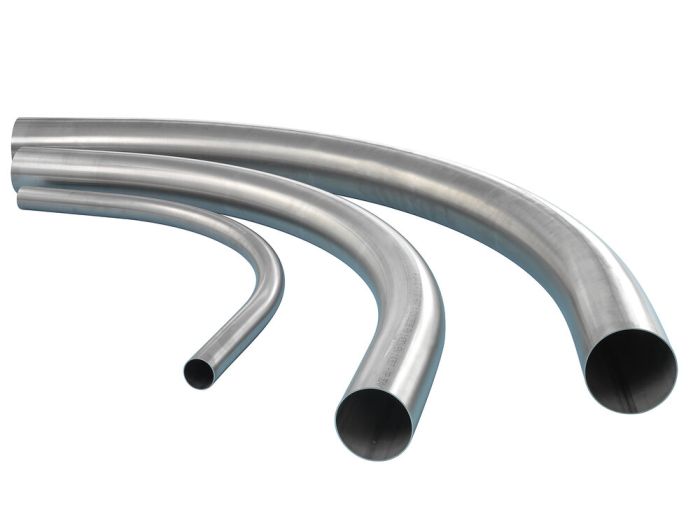

stainless steel pipe bend, D = 133,0 x 3,0 mm
radius 1000 mm, 45°
with 200 mm leg extension each side
stainless steel tube welded, inner wealding seam smoothed
material 1.4301
radius 1000 mm, 45°
with 200 mm leg extension each side
stainless steel tube welded, inner wealding seam smoothed
material 1.4301
| Diameter [mm] | 133.00 |
|---|---|
| Wall thickness [mm] | 3.00 |
| Radius [mm] | 1000.00 |
| Angle [°] | 45.0 |
| Leg extension (short side) [mm] | 200.0 |
| Leg extension (long side) [mm] | 200.0 |
| Material | 14301 |
| Welding seam | laser welded, smothed |
| Norm | EN 10217-7 |
| Tolerance (norm) | ISO 1127 / D3-T3 |
| HVA-Niro® | no |
