Pipe bend Ø 139,7 x 2,60
Pipe bend Ø 139,7 x 2,60 | R 1.000 - 90° - leg 200/200 | stainless steel 1.4301
Article Number
113910003
Pipe bend Ø 139,7 x 2,60 is available to buy in increments of 1
Availability

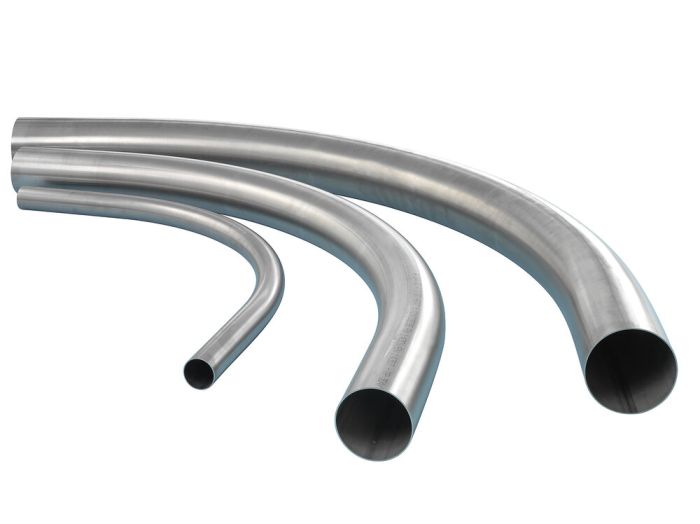

Edelstahl-Rohrbogen, D = 139,7 x 2,6 mm
Radius 1000 mm, 90°
mit je 200 mm Schenkelverlängerung
Edelstahlrohr geschweißt, Innennaht geglättet
Werkstoff 1.4301
Radius 1000 mm, 90°
mit je 200 mm Schenkelverlängerung
Edelstahlrohr geschweißt, Innennaht geglättet
Werkstoff 1.4301
| Diameter [mm] | 139.70 |
|---|---|
| Wall thickness [mm] | 2.60 |
| Radius [mm] | 1000.00 |
| Angle [°] | 90.0 |
| Leg extension (short side) [mm] | 200.0 |
| Leg extension (long side) [mm] | 200.0 |
| Material | 14301 |
| Welding seam | laser welded, smothed |
| Norm | EN 10217-7 |
| Tolerance (norm) | ISO 1127 / D3-T3 |
| HVA-Niro® | no |
