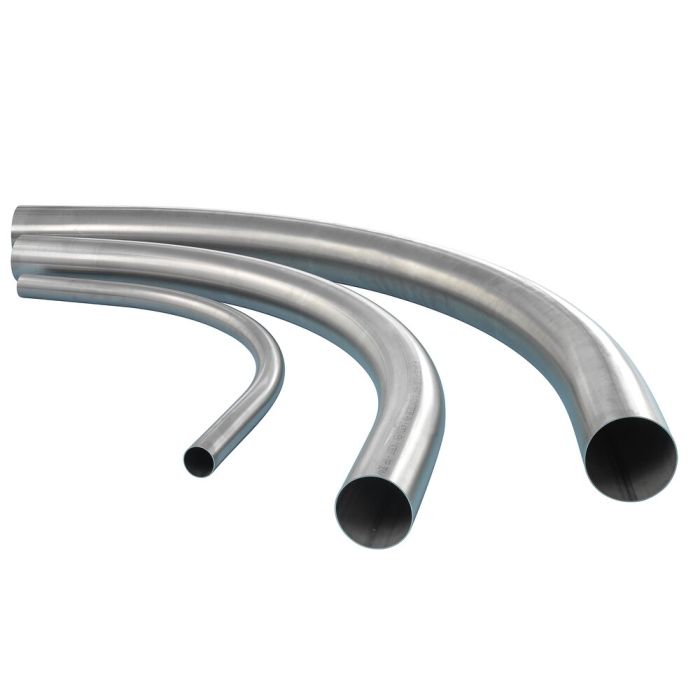

Pipe bend Ø 168,3 x 2,00
radius 1200 mm, 90°
with leg extension of 200 mm each
stainless steel pipe welded,
inner welding seam smoothed
material 1.4301 (AISI 304)
Diameter [mm] | 168.30 |
---|---|
Wall thickness [mm] | 2.00 |
Radius [mm] | 1200.00 |
Angle [°] | 90.0 |
Leg extension (short side) [mm] | 200.0 |
Leg extension (long side) [mm] | 200.0 |
Material | 14301 |
Welding seam | laser welded, smothed |
Norm | EN 10217-7 |
Tolerance (norm) | ISO 1127 / D3-T3 |
HVA-Niro® | no |
