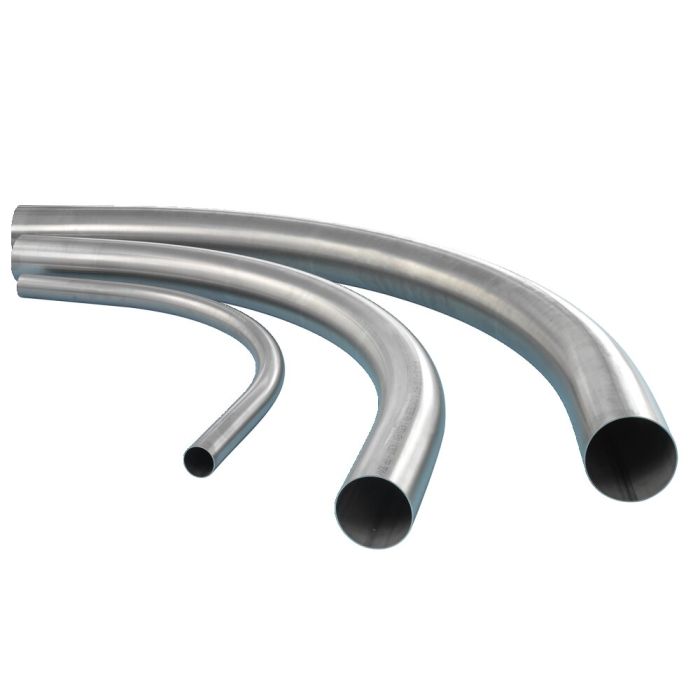

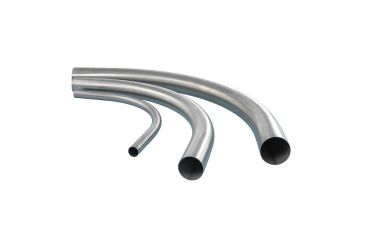

Pipe bend Ø 168,3 x 2,60

Pipe bend Ø 168,3 x 2,60 | R 1.000 - 90° - leg 200/200 | stainless steel 1.4301
Article Number
116810005
Pipe bend Ø 168,3 x 2,60 is available to buy in increments of 1

Availability


Stainless-steel pipe bend, D = 168.3 x 2.6 mm
radius 1000 mm, 90°
with leg extension of 200 mm each
stainless steel pipe welded,
inner welding seam smoothed
material 1.4301 (AISI 304)
More Information
Diameter168,30 mm
Wall thickness2,60 mm
Radius1.000,00 mm
Angle90,0 °
Leg extension (short side)200,0 mm
Leg extension (long side)200,0 mm
Material1.4301
Welding seamlaser welded, smothed
NormEN 10217-7
Tolerance (norm)ISO 1127 / D3-T3
HVA-Niro®no
