Pipe bend Ø 76 x 2,00
Pipe bend Ø 76 x 2,00 | R 300 - 45° - leg 200/200 | aluminium AlMgSi 0,5
Article Number
107650302
Pipe bend Ø 76 x 2,00 is available to buy in increments of 1
Availability

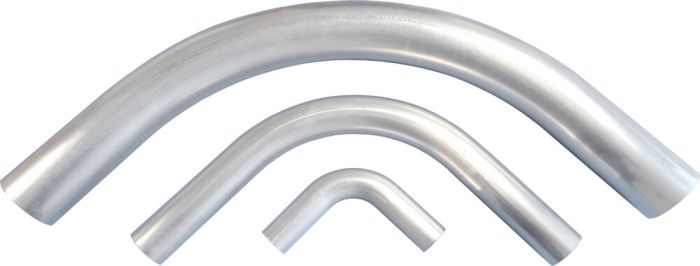

Aluminium pipe bend, D = 76,0 x 2,0 mm
radius 300 mm, 45°
with 200 mm leg extension on each side
alloy: AIMgSI 0,5
radius 300 mm, 45°
with 200 mm leg extension on each side
alloy: AIMgSI 0,5
| Diameter [mm] | 76.00 |
|---|---|
| Wall thickness [mm] | 2.00 |
| Radius [mm] | 300.00 |
| Angle [°] | 45.0 |
| Leg extension (short side) [mm] | 200.0 |
| Leg extension (long side) [mm] | 200.0 |
| Material | AlMgSi 0,5 (EN AW 6060) |
| Welding seam | pressed |
| Norm | EN 573-3;755 |
| HVA-Niro® | no |
