Pipe bend Ø 88,9 x 2,00
Pipe bend Ø 88,9 x 2,00 | R 150 - 90° - leg 200/200 | stainless steel 1.4301
Article Number
108810101
Pipe bend Ø 88,9 x 2,00 is available to buy in increments of 1
Availability

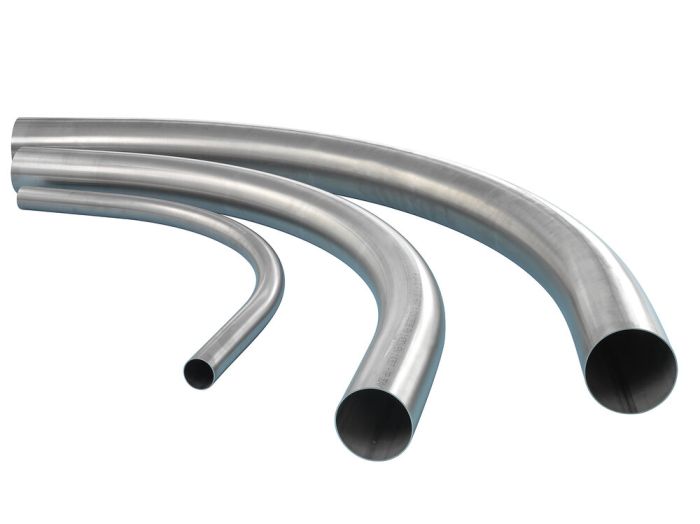

Stainless steel pipe bend, outer diameter 88.9 x 2.0 mm
radius 150 mm, 90°
with 200 mm leg extension each side
stainless steel tube - welded,
inner welding seam smoothed
material no.: 1.4301 (AISI 304)
radius 150 mm, 90°
with 200 mm leg extension each side
stainless steel tube - welded,
inner welding seam smoothed
material no.: 1.4301 (AISI 304)
| Diameter | 88,90 mm |
|---|---|
| Wall thickness | 2,00 mm |
| Radius | 150,00 mm |
| Angle | 90,0 ° |
| Leg extension (short side) | 200,0 mm |
| Leg extension (long side) | 200,0 mm |
| Material | 1.4301 |
| Welding seam | laser welded, smothed |
| Norm | EN 10217-7 |
| Tolerance (norm) | ISO 1127 / D3-T3 |
| HVA-Niro® | no |
