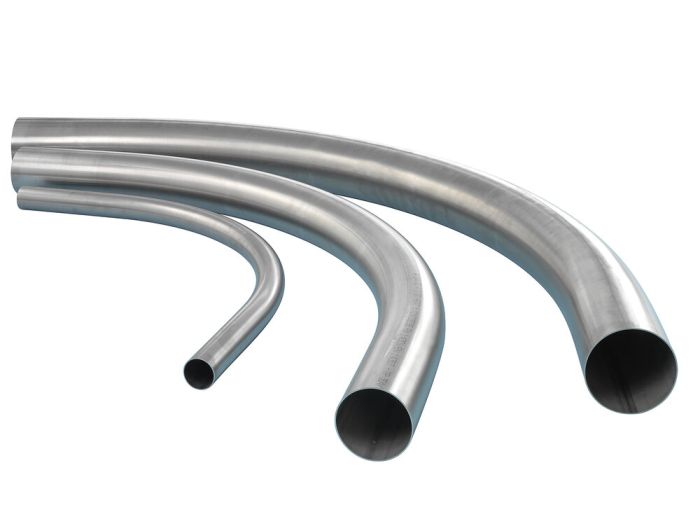

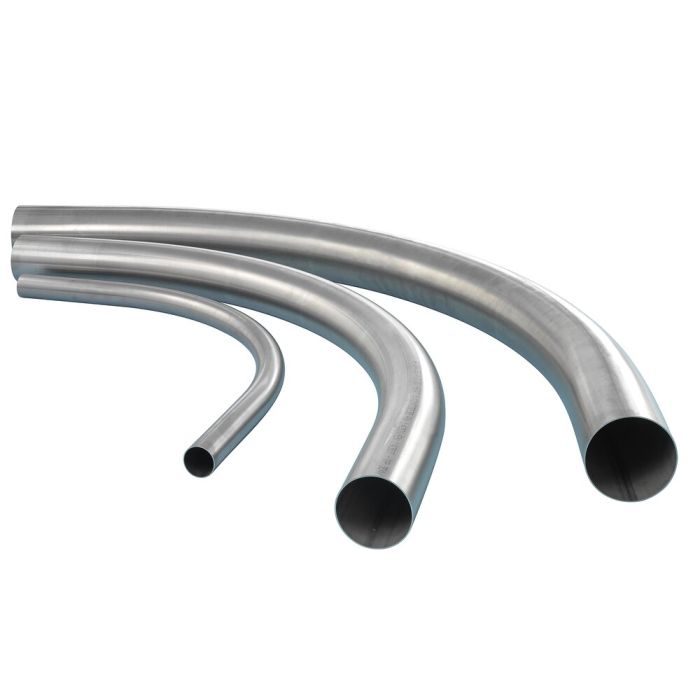

Pipe bend Ø 88,9 x 2,60
radius 500 mm, 45°
with 200 mm leg extension each side
stainless steel tube - welded
Material no.: 1.4301 (AISI 304)
Diameter [mm] | 88.90 |
---|---|
Wall thickness [mm] | 2.60 |
Radius [mm] | 500.00 |
Angle [°] | 45.0 |
Leg extension (short side) [mm] | 200.0 |
Leg extension (long side) [mm] | 200.0 |
Material | 14301 |
Welding seam | laser welded |
Norm | EN 10217-7 |
Tolerance (norm) | ISO 1127 / D3-T3 |
HVA-Niro® | no |
