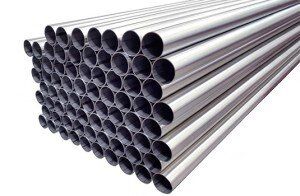

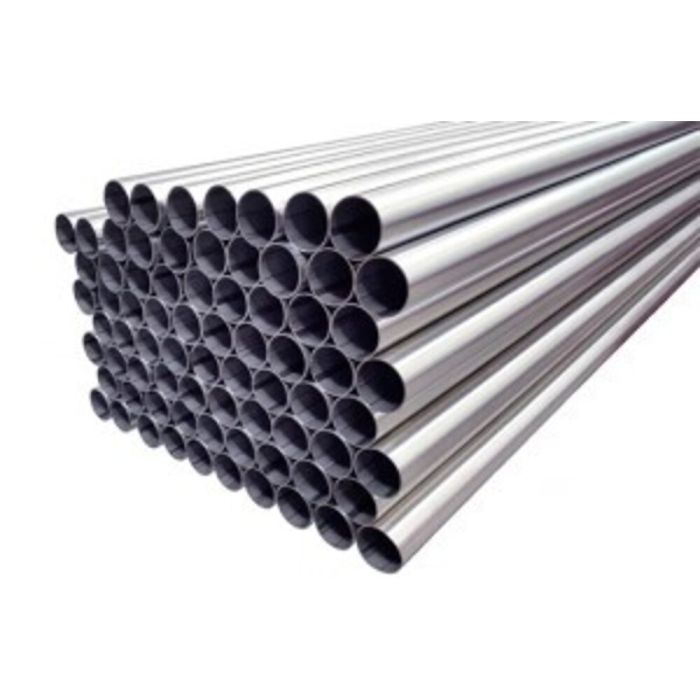

Stainless steel pipe 104x2
material no. 1.4301 (AISI 304), welded,
inner welding seam smoothed,
pre-material cold bent
DIN 11 850 / EN 10357
Diameter | 104,00 mm |
---|---|
Wall thickness | 2,00 mm |
Inner diameter | 100,00 mm |
Length | 6.000,0 mm |
Welding seam | welding seam smoothed |
Norm | EN 10357 |
Material | 1.4301 (AISI 304) |
Surface | cold strip brushed |
Tolerance (norm) | ISO 1127 / D3-T3 |
Pipe ends | deburred |
HVA-Niro® | no |
