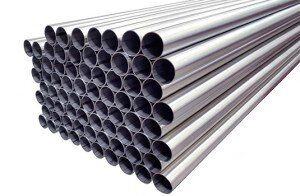

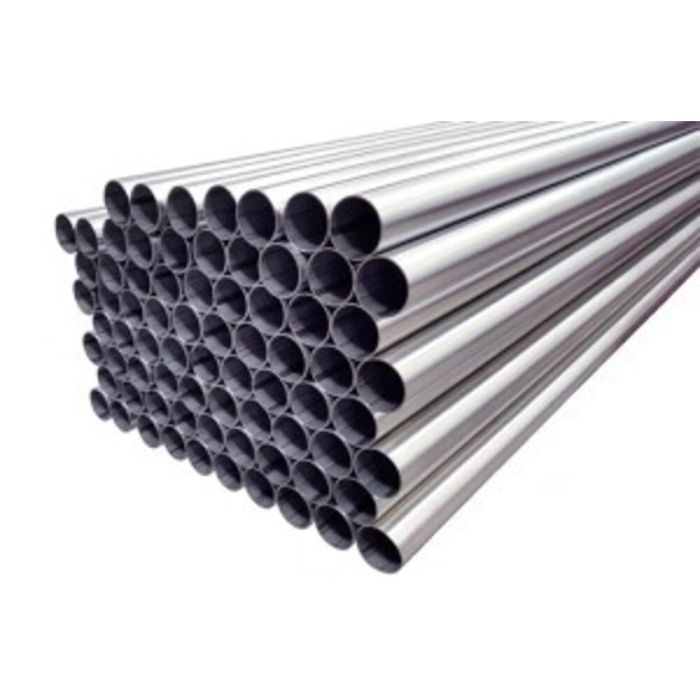

Stainless steel pipe 159x2
Stainless steel pipe 159x2 material: 1.4301 EN 10217-7 / D3-T3 length: 6.000 mm
Article Number
915910002
Stainless steel pipe 159x2 is available to buy in increments of 6
stainless steel tube, 159.0 x 2.0 mm
material no. 1.4301 (AISI 304),
EN 10217-7, cold strip
inner welding seam smoothed (max. 0,15 mm)
tolerance EN ISO 1127 D3/T3
surface pickled
material no. 1.4301 (AISI 304),
EN 10217-7, cold strip
inner welding seam smoothed (max. 0,15 mm)
tolerance EN ISO 1127 D3/T3
surface pickled
| Diameter [mm] | 159.00 |
|---|---|
| Wall thickness [mm] | 2.00 |
| Inner diameter [mm] | 155.00 |
| Length | 6000.0 |
| Welding seam | laser welded, inside weld bead worked h |
| Norm | EN 10217-7 |
| Material | 1.4301 (AISI 304) |
| Surface | W2b cc |
| Tolerance (norm) | ISO 1127 / D3-T3 |
| Pipe ends | deburred |
| HVA-Niro® | no |
