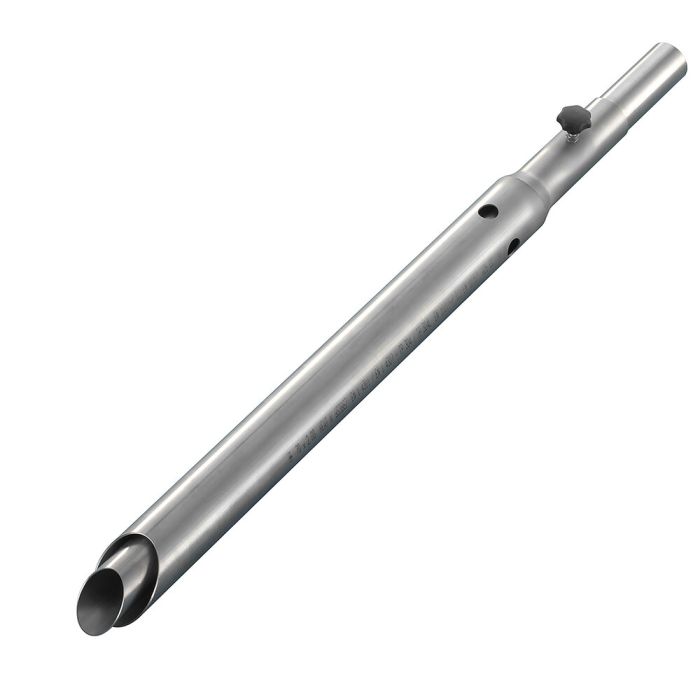

Suction proboscis 60.3 x 2.0mm
incl. welded-on nut M8 for star knob
with 4 false air holes d = 22 mm
Suction pipe length = 1000 mm
(outer tube D = 80.0 mm)
with chamfered
Diameter | 60,30 mm |
---|---|
Wall thickness | 2,00 mm |
Diameter outer pipe | 80,00 mm |
Wall thickness outer pipe | 1,50 mm |
Material | 1.4301 |
Material outer pipe | 1.4301 |
Length suction pipe | 1.000,00 mm |
Fixation | 100 |
Suction design | chamfered |
HVA-Niro® | no |
