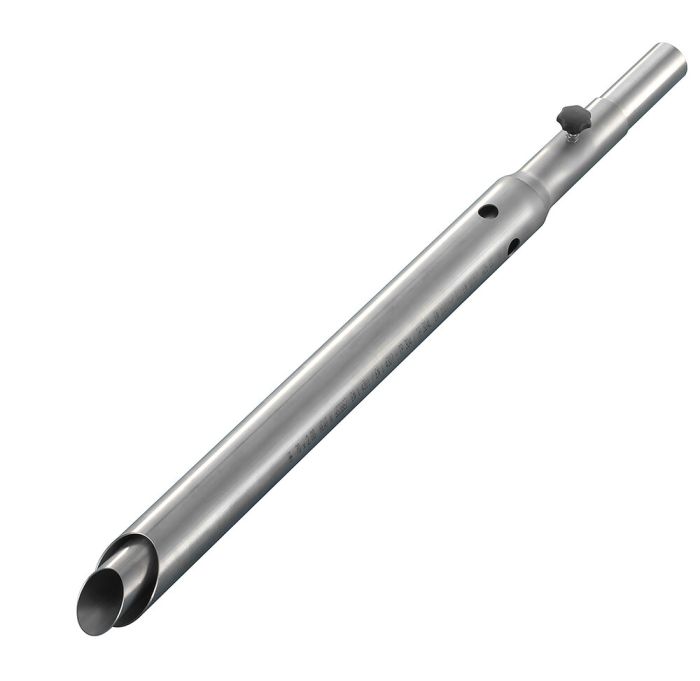

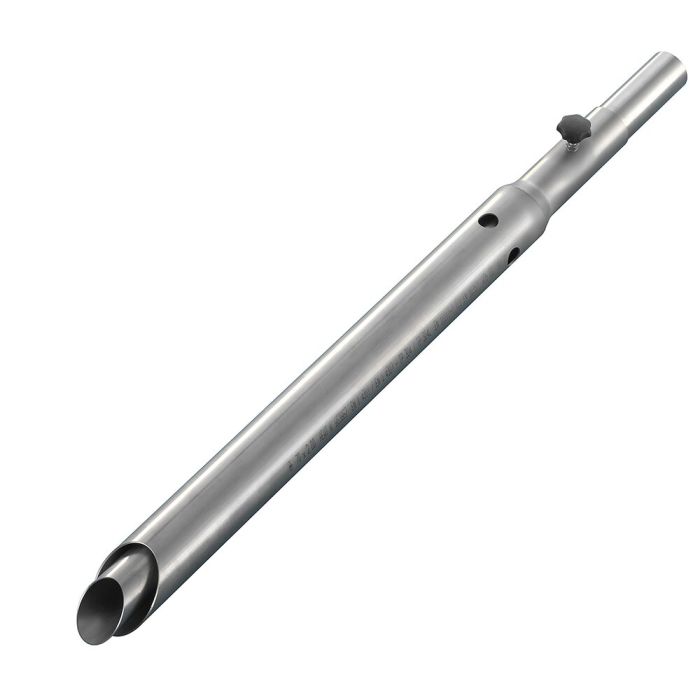

Suction proboscis 76.1 x 2.0mm
Suction proboscis 76.1 x 2.0mm | mitre and star handle | Outside 101.6 mm | Length 1000 mm
Article Number
SAUGR0761-G
Suction proboscis 76.1 x 2.0mm is available to buy in increments of 1
Availability
Stainless steel suction pipe D = 76.1 x 2.0 mm
incl. welded-on nut M8 for star knob
with 4 false air holes d = 22 mm
Suction pipe length = 1000 mm
(outer tube D = 101.6 mm)
with chamfered
incl. welded-on nut M8 for star knob
with 4 false air holes d = 22 mm
Suction pipe length = 1000 mm
(outer tube D = 101.6 mm)
with chamfered
| Diameter | 76,10 mm |
|---|---|
| Wall thickness | 2,00 mm |
| Diameter outer pipe | 101,60 mm |
| Wall thickness outer pipe | 2,00 mm |
| Material | 1.4301 |
| Material outer pipe | 1.4301 |
| Length suction pipe | 1.000,00 mm |
| Fixation | 100 |
| Suction design | chamfered |
| HVA-Niro® | no |
