Pipe bend Ø 45 x 1,50
Pipe bend Ø 45 x 1,50 | R 75 - 45° - leg 100/100 | stainless steel 1.4301
Article Number
104510002
Pipe bend Ø 45 x 1,50 is available to buy in increments of 1
Availability

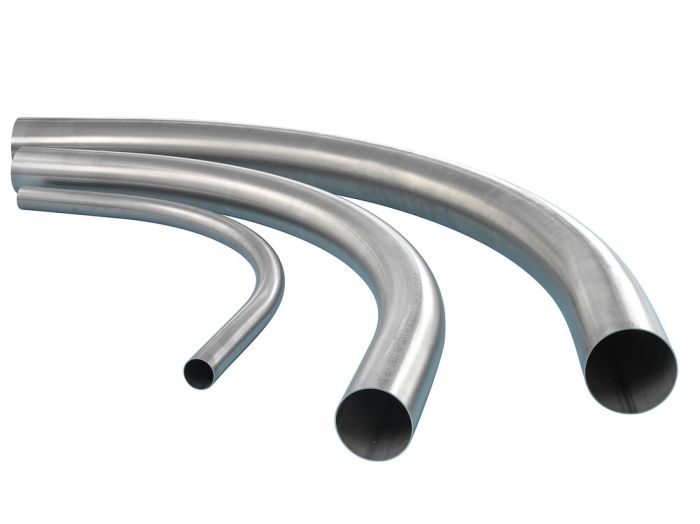

Stainless steel pipe bend, 45.0 x 1.5
radius 75mm, 45°
with 100 mm leg extension each side
stainless steel tube - welded
inner welding seam smoothed
Material no.: 1.4301 (AISI 304)
DIN 11850
radius 75mm, 45°
with 100 mm leg extension each side
stainless steel tube - welded
inner welding seam smoothed
Material no.: 1.4301 (AISI 304)
DIN 11850
| Diameter | 45,00 mm |
|---|---|
| Wall thickness | 1,50 mm |
| Radius | 75,00 mm |
| Angle | 45,0 ° |
| Leg extension (short side) | 100,0 mm |
| Leg extension (long side) | 100,0 mm |
| Material | 1.4301 |
| Welding seam | laser welded, smothed |
| Norm | EN 10357 |
| Tolerance (norm) | ISO 1127 / D3-T3 |
| HVA-Niro® | no |
