Pipe bend Ø 50 x 1,50
Pipe bend Ø 50 x 1,50 | R 300 - 45° - leg 112/380 | stainless steel 1.4301
Article Number
105010306
Pipe bend Ø 50 x 1,50 is available to buy in increments of 1
Availability

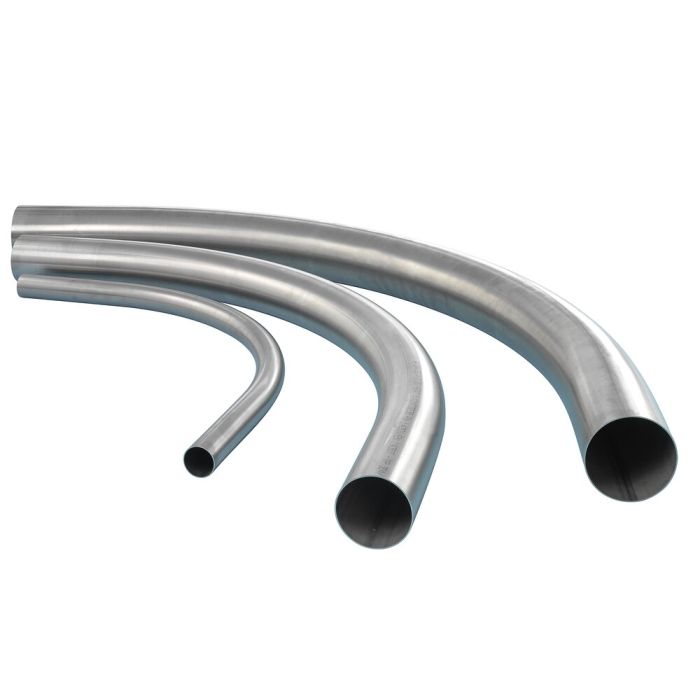

Stainless steel pipe bend, outer diameter 50.0 x 1,5 mm
radius 300 mm, 45°
one side 112 mm leg extension
other side 380 mm leg extension
stainless steel tube - welded
inner welding seam smoothed
Material no.: 1.4301 (AISI 304)
according drawing 344-62.2.01
Motan Artikel-Nr. 4247600
radius 300 mm, 45°
one side 112 mm leg extension
other side 380 mm leg extension
stainless steel tube - welded
inner welding seam smoothed
Material no.: 1.4301 (AISI 304)
according drawing 344-62.2.01
Motan Artikel-Nr. 4247600
| Diameter [mm] | 50.00 |
|---|---|
| Wall thickness [mm] | 1.50 |
| Radius [mm] | 300.00 |
| Angle [°] | 45.0 |
| Leg extension (short side) [mm] | 112.0 |
| Leg extension (long side) [mm] | 380.0 |
| Material | 14301 |
| Welding seam | laser welded, smothed |
| Norm | EN 10217-7 |
| Tolerance (norm) | ISO 1127 / D3-T3 |
| HVA-Niro® | no |
Some downloads can only be viewed in logged-in state. If a desired download is not available, please feel free to contact us directly.
| Art | Beschreibung | Sprache | Dateigröße |
|---|
