Pipe bend Ø 50 x 2,00
Pipe bend Ø 50 x 2,00 | R 180 - 45° - leg 100/100 | stainless steel 1.4301
Article Number
105010121
Pipe bend Ø 50 x 2,00 is available to buy in increments of 1
Availability

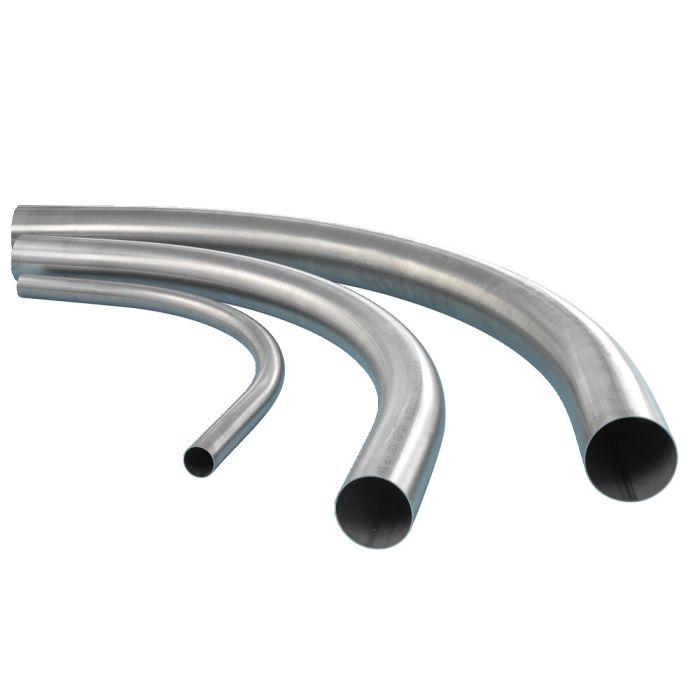

Stainless steel pipe bend, outer diameter 50.0 x 2.0 mm
radius 180 mm, 45°
with 100 mm leg extension each side
stainless steel tube - welded
inner welding seam smoothed
material no.: 1.4301 (AISI 304)
radius 180 mm, 45°
with 100 mm leg extension each side
stainless steel tube - welded
inner welding seam smoothed
material no.: 1.4301 (AISI 304)
| Diameter [mm] | 50.00 |
|---|---|
| Wall thickness [mm] | 2.00 |
| Radius [mm] | 180.00 |
| Angle [°] | 45.0 |
| Leg extension (short side) [mm] | 100.0 |
| Leg extension (long side) [mm] | 100.0 |
| Material | 14301 |
| Welding seam | laser welded, smothed |
| Norm | EN 10217-7 |
| Tolerance (norm) | ISO 1127 / D3-T3 |
| HVA-Niro® | no |
Some downloads can only be viewed in logged-in state. If a desired download is not available, please feel free to contact us directly.
| Art | Beschreibung | Sprache | Dateigröße |
|---|
