Pipe bend Ø 159 x 2,00
Pipe bend Ø 159 x 2,00 | R 800 - 45° - leg 200/200 | stainless steel 1.4301
Article Number
115910804
Pipe bend Ø 159 x 2,00 is available to buy in increments of 1
Availability

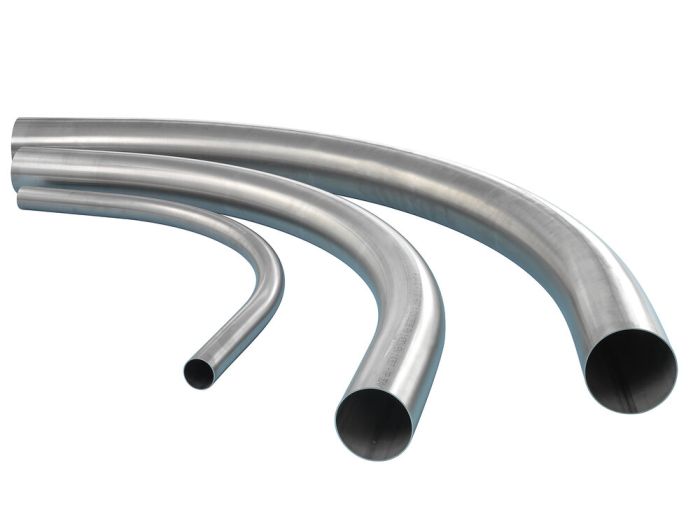

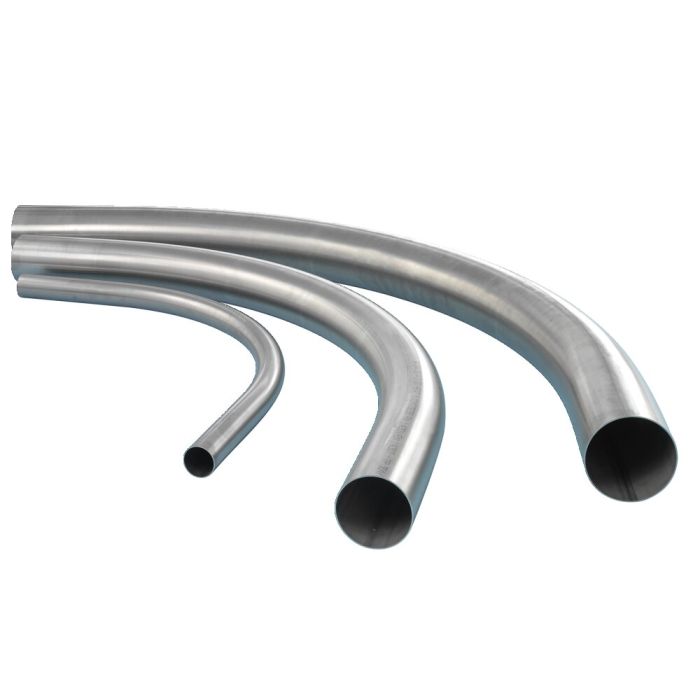

Stainless steel pipe bend, outer diameter 159 x 2,0 mm
stainless steel pipe bend, D = 159,0 x 2,0 mm
radius 800 mm, 45°
with 200 mm leg extension each side
stainless steel tube welded, inner welding seam smoothed
material 1.4301
stainless steel pipe bend, D = 159,0 x 2,0 mm
radius 800 mm, 45°
with 200 mm leg extension each side
stainless steel tube welded, inner welding seam smoothed
material 1.4301
| Diameter [mm] | 159.00 |
|---|---|
| Wall thickness [mm] | 2.00 |
| Radius [mm] | 800.00 |
| Angle [°] | 45.0 |
| Leg extension (short side) [mm] | 200.0 |
| Leg extension (long side) [mm] | 200.0 |
| Material | 14301 |
| Welding seam | laser welded, inside weld bead worked h |
| Norm | EN 10217-7 |
| Tolerance (norm) | ISO 1127 / D3-T3 |
| HVA-Niro® | no |
