Pipe bend Ø 40 x 1,50
Pipe bend Ø 40 x 1,50 R 250 - 45° - leg 200/200 stainless steel 1.4301
Article Number
104010204
Pipe bend Ø 40 x 1,50 is available to buy in increments of 1

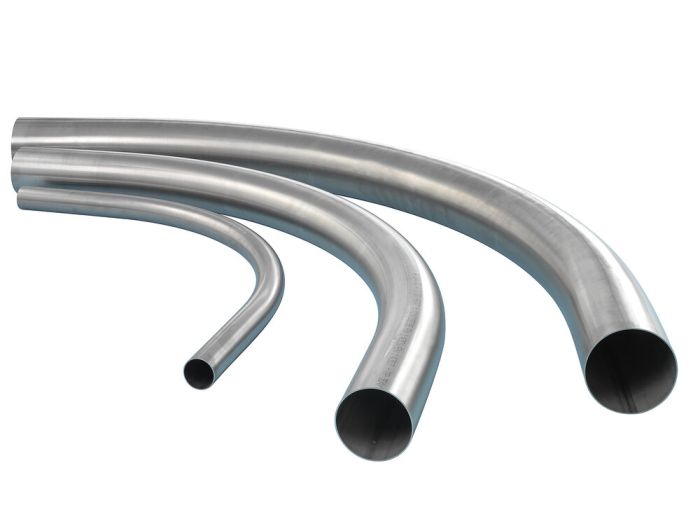

Stainless steel pipe bend, outer diameter 40.0 x 1.5 mm
radius 250 mm, 45°
with 200 mm leg extension each side
stainless steel tube - welded
inner welding seam smoothed
Material no.: 1.4301 (AISI 304)
DIN 11850
radius 250 mm, 45°
with 200 mm leg extension each side
stainless steel tube - welded
inner welding seam smoothed
Material no.: 1.4301 (AISI 304)
DIN 11850
| Diameter [mm] | 40.00 |
|---|---|
| Wall thickness [mm] | 1.50 |
| Radius [mm] | 250.00 |
| Angle [°] | 45.0 |
| Leg extension (short side) [mm] | 200.0 |
| Leg extension (long side) [mm] | 200.0 |
| Material | 14301 |
| Welding seam | laser welded, smothed |
| Norm | EN 10217-7 |
| Tolerance (norm) | ISO 1127 / D3-T3 |
| HVA-Niro® | no |
