Pipe bend Ø 100 x 1,50

Pipe bend Ø 100 x 1,50 | R 800 - 45° - leg 200/200 | stainless steel 1.4301
Article Number
110010803
Pipe bend Ø 100 x 1,50 is available to buy in increments of 1

Availability

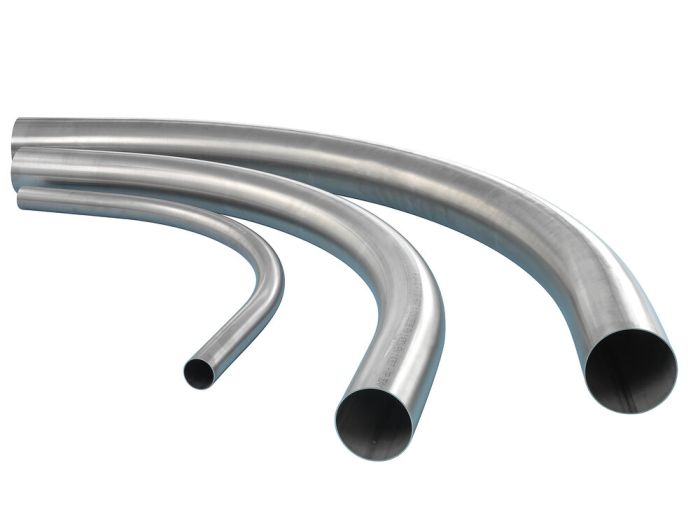

Stainless steel pipe bend, outer diameter 100 x 1.5 mm
radius 800 mm, 45°
with 200 mm leg extension each side
stainless steel tube - welded
Material no.: 1.4301 (AISI 304)
More Information
Diameter100,00 mm
Wall thickness1,50 mm
Radius800,00 mm
Angle45,0 °
Leg extension (short side)200,0 mm
Leg extension (long side)200,0 mm
Material1.4301
Welding seamlaser welded
NormEN 10217-7
Tolerance (norm)ISO 1127 / D3-T3
HVA-Niro®no
